BAW56C SILICON EPITAXIAL PLANAR DIODE

BAW56C Description

SEMICONDUCTOR TECHNICAL DATA ULTRA HIGH SPEED SWITCHING APPLICATION..

BAW56C Features

* Small Package : SOT-23(1). MAXIMUM RATING (Ta=25 ) CHARACTERISTIC SYMBOL RATING Maximum (Peak) Reverse Voltage Reverse Voltage Continuous Forward Current Surge Current (10ms) Power Dissipation Junction Temperature Storage Temperature Range VRM VR IF IFSM PD Tj Tstg 85 80 200 2 225
* 150 -55

📥 Download Datasheet

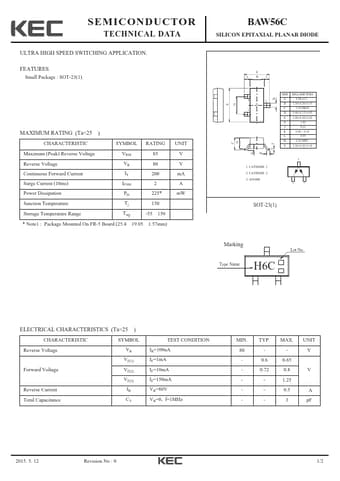

Preview of BAW56C PDF
datasheet Preview Page 2

Datasheet Details

Part number
BAW56C
Manufacturer
KEC
File Size
344.80 KB
Datasheet
BAW56C-KEC.pdf
Description
SILICON EPITAXIAL PLANAR DIODE
