BAW56-G Small Signal Switching Diode

BAW56-G Description

www.vishay.com BAW56-G Vishay Semiconductors Small Signal Switching Diode, Dual 3 12 MECHANICAL DATA Case: SOT-23 Weight: approx.8.1 mg Packaging .

BAW56-G Features

* Silicon epitaxial planar diode
* Fast switching dual diode with common anode
* AEC-Q101 qualified
* Base P/N-G3 - green, commercial grade
* Material categorization: For definitions of compliance www. vishay. com/doc?99912          please see

📥 Download Datasheet

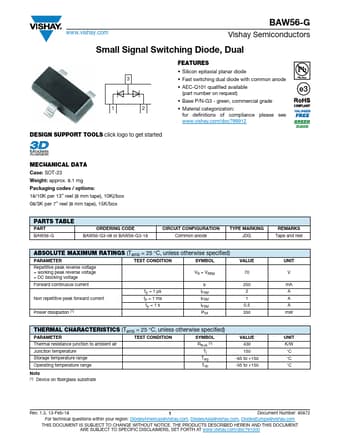

Preview of BAW56-G PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAW56-G
Manufacturer
Vishay ↗
File Size
96.75 KB
Datasheet
BAW56-G-Vishay.pdf
Description
Small Signal Switching Diode
