BAS16TH-Q High-speed switching diode

BAS16TH-Q Description

BAS16TH-Q High-speed switching diode 18 March 2025 Product data sheet 1.General .
High-speed switching diode, encapsulated in a small SOT23 Surface-Mounted Device (SMD) plastic package. High switc.

BAS16TH-Q Features

* High switching speed: trr ≤ 4 ns
* Low leakage current
* Repetitive peak reverse voltage VRRM ≤ 100 V
* Low capacitance
* Small SMD plastic package

BAS16TH-Q Applications

* up to 175 °C
* Qualified according to AEC-Q101 and recommended for use in automotive applications 3. Applications
* High-speed switching
* General-purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ VRRM repetit

📥 Download Datasheet

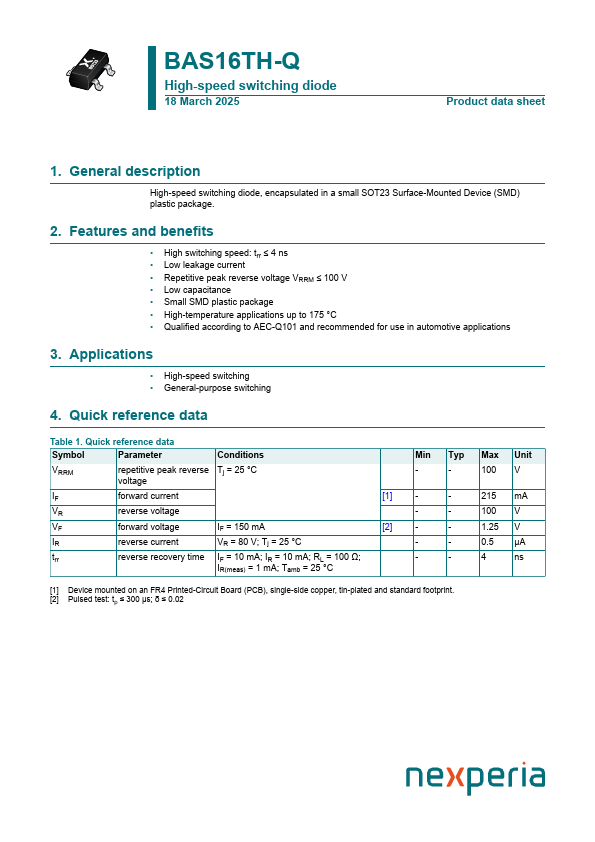

Preview of BAS16TH-Q PDF

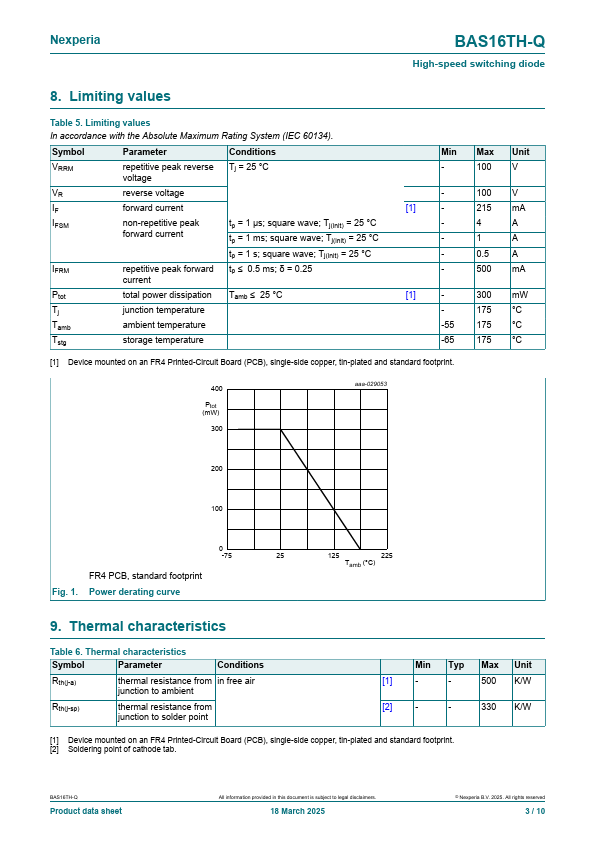

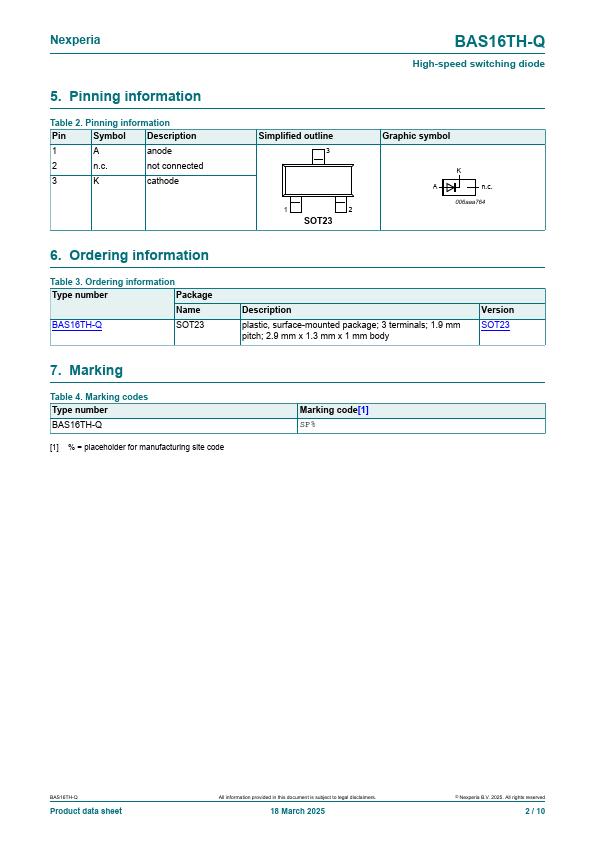

datasheet Preview Page 2 datasheet Preview Page 3
