74HCS16507-Q100 - 8-bit parallel-load shift register

nexperia

The 74HCS16507-Q100 by nexperia is a 8-bit parallel-load shift register. Below is the official datasheet preview.

📥 Download Datasheet

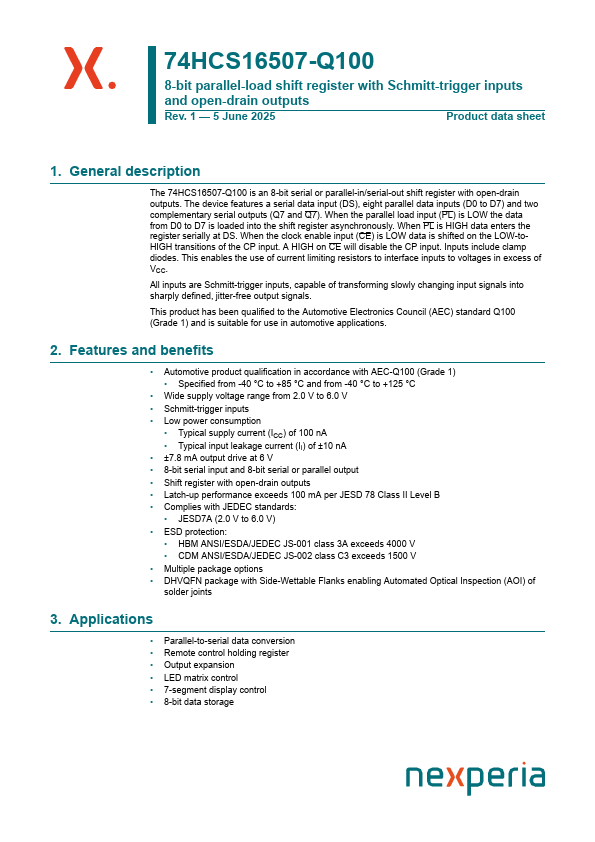

74HCS16507-Q100 8-bit parallel-load shift register by nexperia - Datasheet Preview — Official preview page of the 74HCS16507-Q100 8-bit parallel-load shift register datasheet (nexperia).

Datasheet Details

Part number	74HCS16507-Q100
Manufacturer	nexperia
File Size	341.64 KB
Description	8-bit parallel-load shift register
Datasheet	74HCS16507-Q100-nexperia.pdf

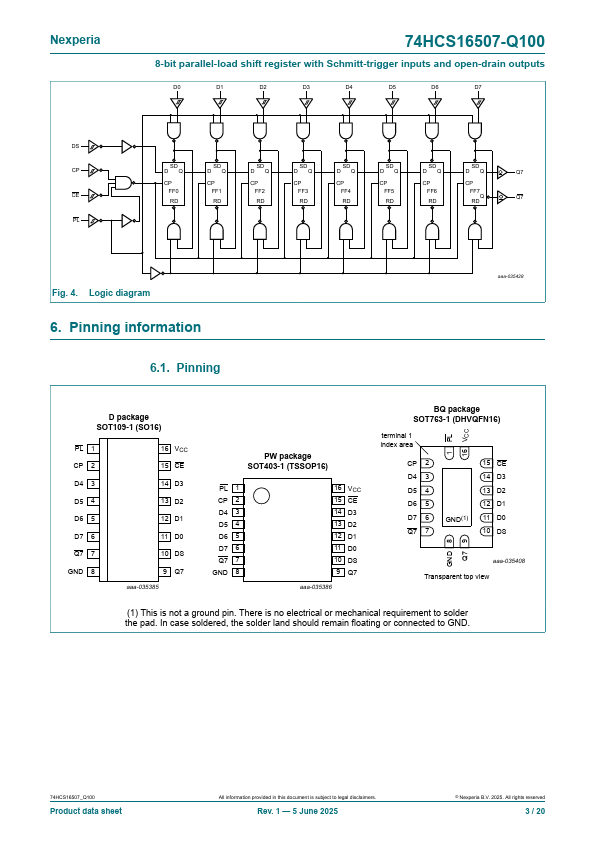

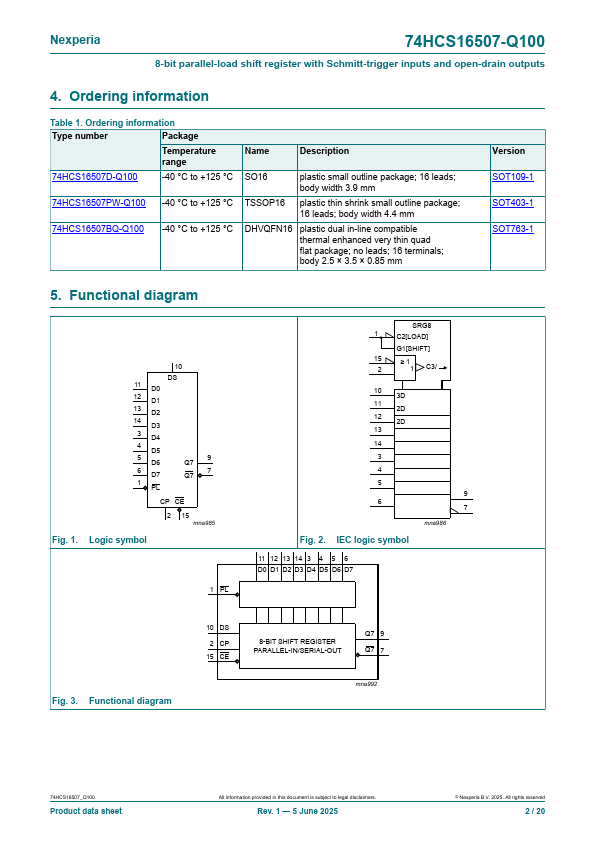

Additional preview pages of the 74HCS16507-Q100 datasheet.

74HCS16507-Q100 Product details

Description

The 74HCS16507-Q100 is an 8-bit serial or parallel-in/serial-out shift register with open-drain outputs.

Features

Automotive product qualification in accordance with AEC-Q100 (Grade 1).
Specified from -40 °C to +85 °C and from -40 °C to +125 °C.
Wide supply voltage range from 2.0 V to 6.0 V.
Schmitt-trigger inputs.
Low power consumption.
Typical supply current (ICC) of 100 nA.
Typical input leakage current (II) of ±10 nA.
±7.8 mA output drive at 6 V.
8-bit serial input and 8-bit serial or parallel output.
Shift regist.
