74HCS165 - 8-bit parallel-in/serial out shift register

nexperia

The 74HCS165 by nexperia is a 8-bit parallel-in/serial out shift register. Below is the official datasheet preview.

📥 Download Datasheet

74HCS165 8-bit parallel-in/serial out shift register by nexperia - Datasheet Preview — Official preview page of the 74HCS165 8-bit parallel-in/serial out shift register datasheet (nexperia).

Datasheet Details

Part number	74HCS165
Manufacturer	nexperia
File Size	343.30 KB
Description	8-bit parallel-in/serial out shift register
Datasheet	74HCS165-nexperia.pdf
Additional preview pages of the 74HCS165 datasheet.

74HCS165 Product details

Description

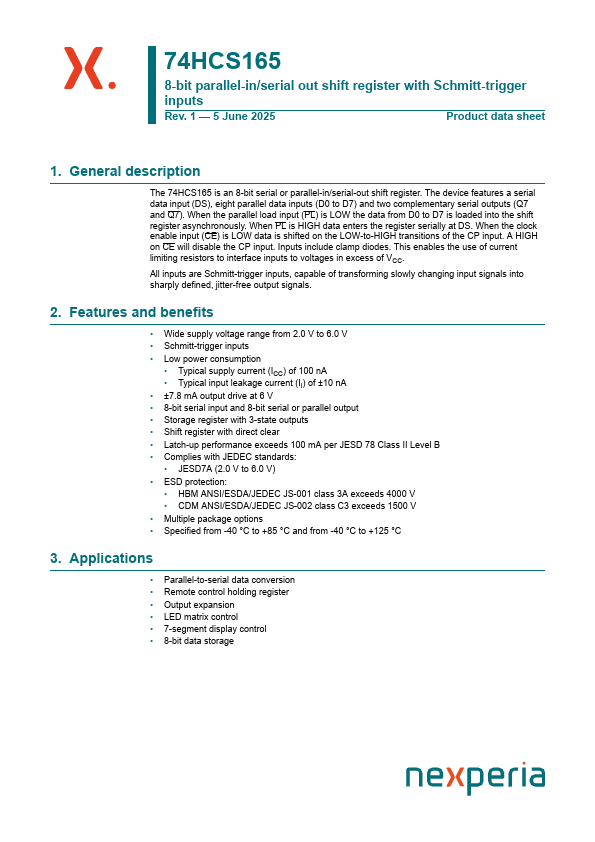

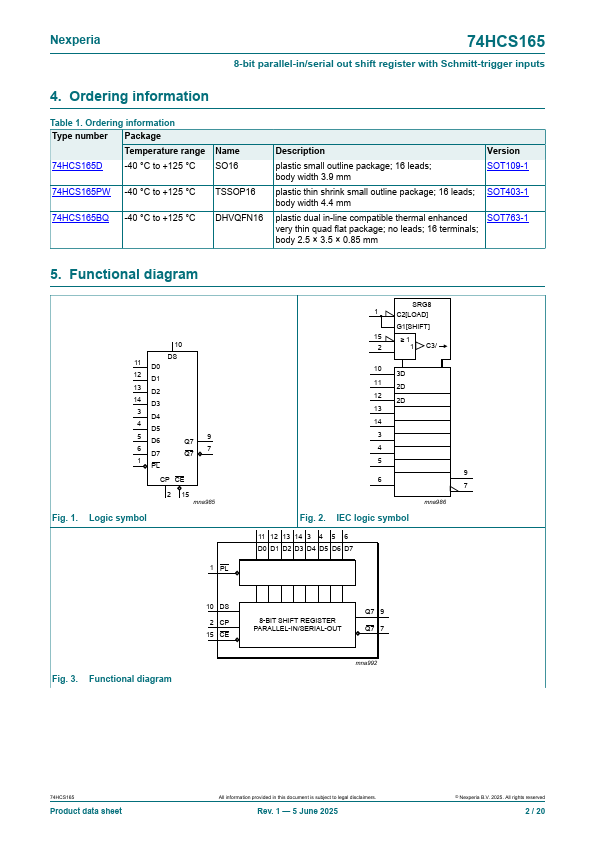

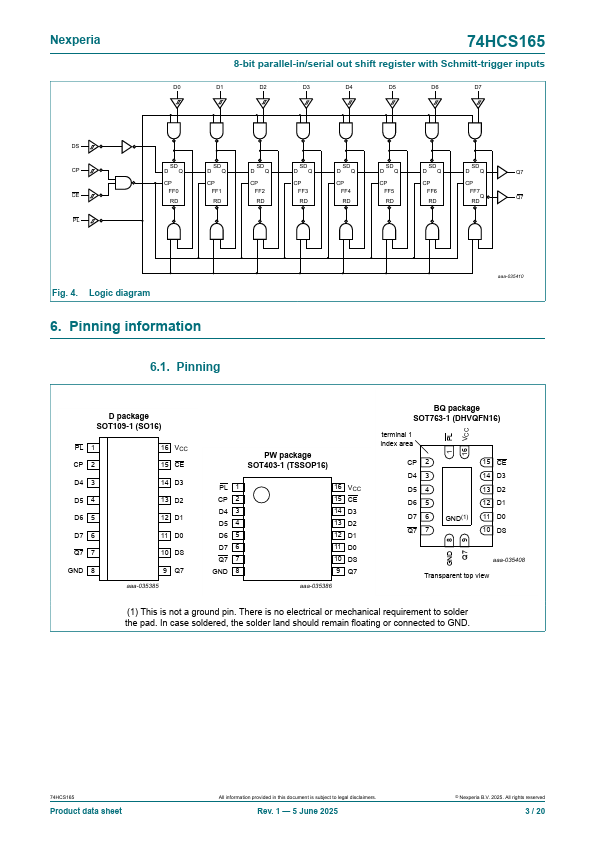

The 74HCS165 is an 8-bit serial or parallel-in/serial-out shift register.

Features

Wide supply voltage range from 2.0 V to 6.0 V.
Schmitt-trigger inputs.
Low power consumption.
Typical supply current (ICC) of 100 nA.
Typical input leakage current (II) of ±10 nA.
±7.8 mA output drive at 6 V.
8-bit serial input and 8-bit serial or parallel output.
Storage register with 3-state outputs.
Shift register with direct clear.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
