74HCS126 - Quad buffer/line driver

nexperia

The 74HCS126 by nexperia is a Quad buffer/line driver. Below is the official datasheet preview.

📥 Download Datasheet

74HCS126 Quad buffer/line driver by nexperia - Datasheet Preview — Official preview page of the 74HCS126 Quad buffer/line driver datasheet (nexperia).

Datasheet Details

Part number	74HCS126
Manufacturer	nexperia
File Size	293.10 KB
Description	Quad buffer/line driver
Datasheet	74HCS126-nexperia.pdf

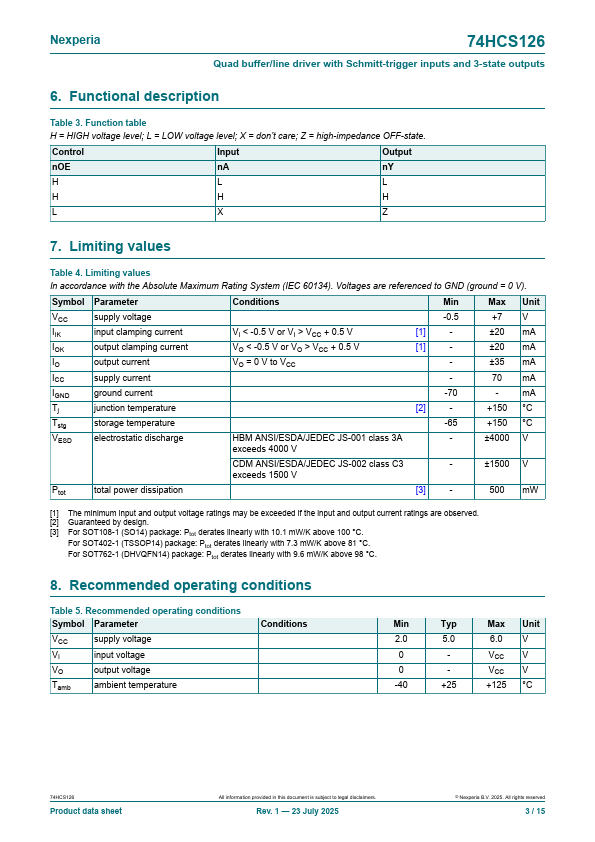

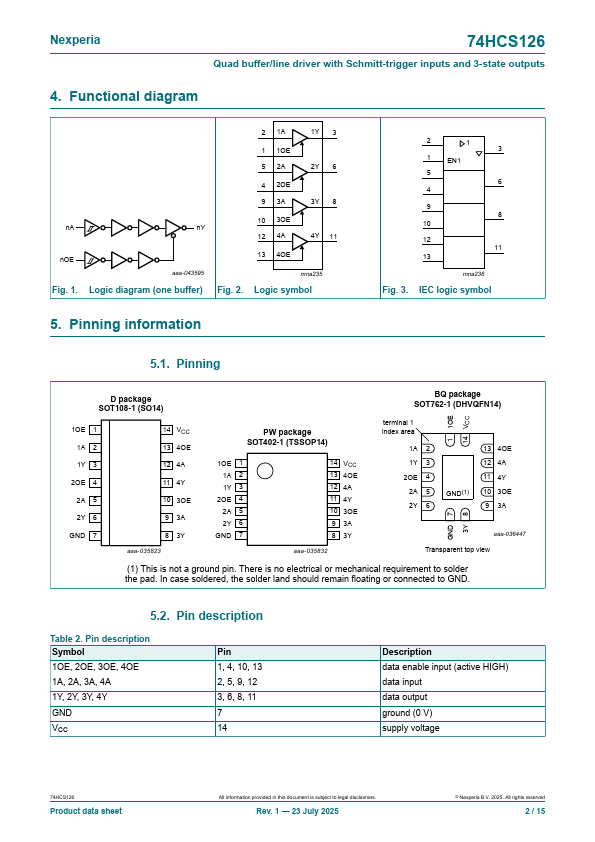

Additional preview pages of the 74HCS126 datasheet.

74HCS126 Product details

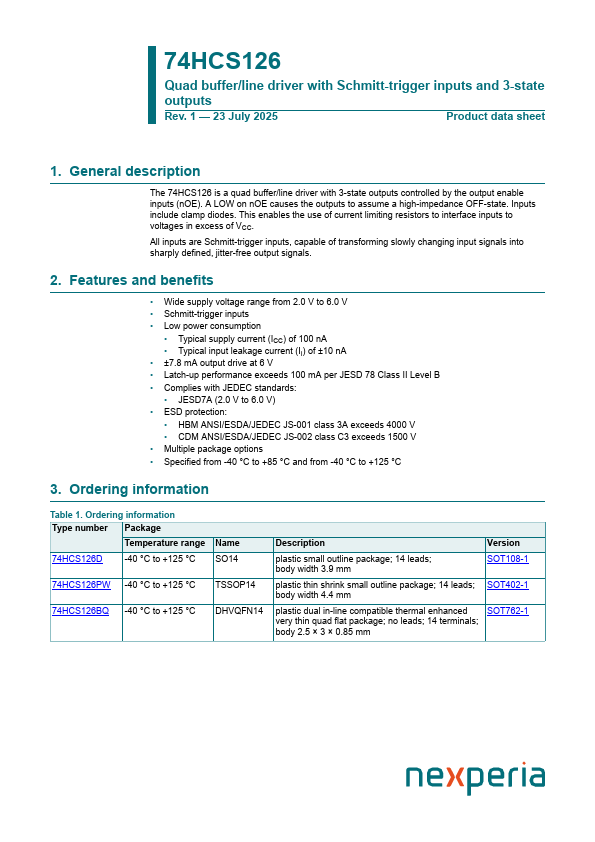

Description

The 74HCS126 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE).

Features

Wide supply voltage range from 2.0 V to 6.0 V.
Schmitt-trigger inputs.
Low power consumption.
Typical supply current (ICC) of 100 nA.
Typical input leakage current (II) of ±10 nA.
±7.8 mA output drive at 6 V.
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Complies with JEDEC standards:.
JESD7A (2.0 V to 6.0 V).
ESD protection:.
HBM ANSI/ESDA/JEDEC JS-001 class 3A exceeds 4000 V.
