TPS5430 - 3-A Wide Input Range Step-Down Converter

Datasheet Summary

Description

The TPS543x is a high-output-current PWM converter that integrates a low-resistance, high-side N-channel MOSFET.

Features

  • Wide input voltage range:.
  • TPS5430: 5.5V to 36V.
  • TPS5431: 5.5V to 23V.
  • Up to 3A continuous (4A peak) output current.
  • High efficiency up to 95% enabled by 100mΩ integrated MOSFET switch.
  • Wide output voltage range: adjustable down to 1.22V with 1.5% initial accuracy.
  • Internal compensation minimizes external parts count.
  • Fixed 500kHz switching frequency for small filter size.
  • Improved line regulation and transient res.

📥 Download Datasheet

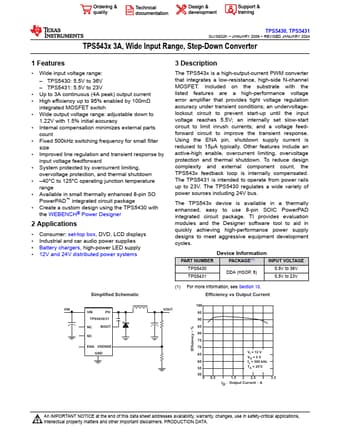

Datasheet preview – TPS5430

Datasheet Details

Part number TPS5430
Manufacturer Texas Instruments
File Size 1.06 MB
Description 3-A Wide Input Range Step-Down Converter
Datasheet download datasheet TPS5430 Datasheet
