TPS0509, TPS0505 - 2W 6KVDC Isolated Dual Output DC/DC Converters

TOPPOWER

📥 Download Datasheet

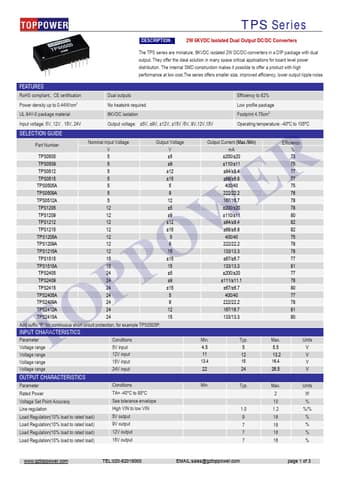

TPS0509 Datasheet Preview — This datasheet PDF includes multiple part numbers: TPS0509, TPS0505. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	TPS0509, TPS0505
Manufacturer	TOPPOWER
File Size	558.33 KB
Description	2W 6KVDC Isolated Dual Output DC/DC Converters
Datasheet	TPS0505-TOPPOWER.pdf
Note	This datasheet PDF includes multiple part numbers: TPS0509, TPS0505. Please refer to the document for exact specifications by model.

TPS0509 Product details

Description

2W 6KVDC Isolated Dual Output DC/DC Converters The TPS series are miniature, 6KVDC isolated 2W DC/DC-converters in a DIP package with dual output.They offer the ideal solution in many space critical applications for board level power distribution.The internal SMD construction makes it possible to offer a product with high performance at low cost.The series offers smaller size, improved efficiency, lower output ripple noise.

Features

RoHS compliant、CE certification Dual outputs Efficiency to 82% Power density up to 0.44W/cm3 No heatsink required Low profile package UL 94V-0 package material 6KVDC isolation Footprint 4.75cm2 Input voltage: 5V, 12V , 15V, 24V Output voltage: ±5V, ±9V, ±12V, ±15V /5V, 9V,12V,15V Operating temperature: -40ºC to 105ºC.
