TPS54540DDAR, TPS54540D High Efficiency Synchronous Step-down DCDCConverter

TPS54540DDAR Description

TPS54540DDAR 3.8V-36V Vin, 5A, High Efficiency Synchronous Step-down DCDC Converter with Programmable Frequency .
The TPS54540D is 5A synchronous buck converters with wide input voltage, ranging from 3.

TPS54540DDAR Features

* Wide Input Range: 3.8V-36V
* Up to 5A Continuous Output Current
* Integrated 45mΩ High-Side and 20mΩ Low-Side
* Low Dropout Mode Operation
* Derivable Inverting Voltage Regulator
* Frequency Spread Spectrum (FSS) Modulation Power MOSFETs for EMI Reduction
* Feedback

TPS54540DDAR Applications

* Battery Pack Powered System - Cordless Input Voltage Under-voltage Lock Out Protection Power Tools, Cordless Home Appliance, Drone, (UVLO) Threshold and Hysteresis Aero Modeling, GPS Tracker etc.
* Minimum On-time: 100ns
* Cigarette Lighter Adapters, Chargers
* Internal Soft

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPS54540DDAR, TPS54540D. Please refer to the document for exact specifications by model.

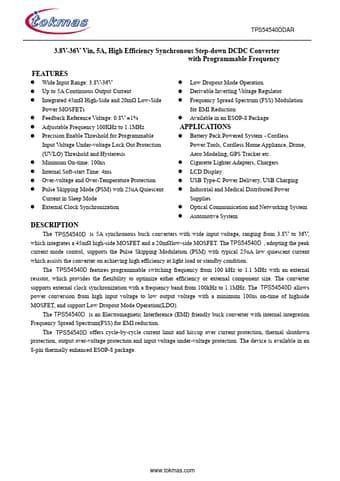

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPS54540DDAR, TPS54540D
Manufacturer
tokmas
File Size
1.14 MB
Datasheet
TPS54540D-tokmas.pdf
Description
High Efficiency Synchronous Step-down DCDCConverter
Note
This datasheet PDF includes multiple part numbers: TPS54540DDAR, TPS54540D.
Please refer to the document for exact specifications by model.
