TPS51125A - Step-Down Controller

Texas Instruments

The TPS51125A by Texas Instruments is a Step-Down Controller. Below is the official datasheet preview.

📥 Download Datasheet

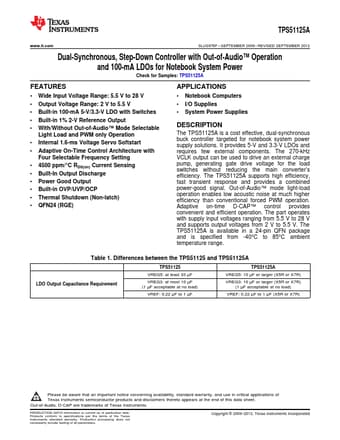

TPS51125A Step-Down Controller by Texas Instruments - Datasheet Preview — Official preview page of the TPS51125A Step-Down Controller datasheet (Texas Instruments).

Datasheet Details

Part number	TPS51125A
Manufacturer	Texas Instruments
File Size	2.42 MB
Description	Step-Down Controller
Datasheet	TPS51125A-etcTI.pdf
Additional preview pages of the TPS51125A datasheet.

TPS51125A Product details

Description

The TPS51125A is a cost effective, dual-synchronous buck controller targeted for notebook system power supply solutions.

Features

1.
2 Wide Input Voltage Range: 5.5 V to 28 V.
Output Voltage Range: 2 V to 5.5 V.
Built-in 100-mA 5-V/3.3-V LDO with Switches.
Built-in 1% 2-V Reference Output.
With/Without Out-of-Audio™ Mode Selectable Light Load and PWM only Operation.
Internal 1.6-ms Voltage Servo Softstart.
Adaptive On-Time Control Architecture with Four Selectable Frequency Setting.
4500 ppm/°C RDS(on) Current Sensing.
Built-In Output Discharge.
