TL1591 - SAMPLE-AND-HOLD CIRCUIT

The TL1591 by Texas Instruments is a SAMPLE-AND-HOLD CIRCUIT. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the TL1591 SAMPLE-AND-HOLD CIRCUIT datasheet (Texas Instruments).

Datasheet Details

Part number TL1591
Manufacturer Texas Instruments
File Size 219.66 KB
Description SAMPLE-AND-HOLD CIRCUIT
Datasheet download datasheet TL1591-etcTI.pdf
Additional preview pages of the TL1591 datasheet.

TL1591 Product details

Description

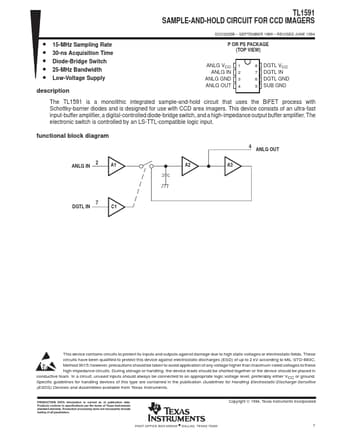

SOCS026B SEPTEMBER 1989 REVISED JUNE 1994 P OR PS PACKAGE (TOP VIEW) ANLG VCC 1 ANLG IN 2 ANLG GND 3 ANLG OUT 4 8 DGTL VCC 7 DGTL IN 6 DGTL GND 5 SUB GND The TL1591 is a monolithic integrated sample-and-hold circuit that uses the BiFET process with Schottky-barrier diodes and is designed for use with CCD area imagers.This device consists of an ultra-fast input-buffer amplifier, a digital-controlled diode-bridge switch, and a high-impedance output buffer amplifier.The el
