TL1014 - Tact Switch

Download the TL1014 datasheet PDF (TL1014-E included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for tact switch.

Features

  • & benefitS.
  • Tape & Reel packaging.
  • Multiple operating forces.
  • Surface mount termination.
  • Right angle design.
  • Subminiature in size part number configurator Series Boss TL1014 A - No boss B - Boss Actuation Force F160 - 160 gf F220 - 220 gf Contact Plating Termination Q - Silver G - Gullwing.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TL1014-E-SWITCH.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TL1014
Manufacturer E-SWITCH
File Size 354.04 KB
Description Tact Switch
Datasheet download datasheet TL1014 Datasheet

📁 Similar Datasheet

  • TL1013 - 25W LinearPA GaAs module (TRIAD)
  • TL1003 - Thyristors (ST Microelectronics)
  • TL1006 - SCR (ST Microelectronics)
  • TL100V - Single Level 3.81 mm Pitch Vertical PCB Terminal Blocks (CONNECTWELL)
  • TL100V-2P - Single Level 3.81 mm Pitch Vertical PCB Terminal Blocks (CONNECTWELL)
  • TL100V-3P - Single Level 3.81 mm Pitch Vertical PCB Terminal Blocks (CONNECTWELL)
  • TL103W - Dual Operational Amplifier (Texas Instruments)
  • TL103WA - Dual Operational Amplifier (Texas Instruments)
  • TL1051 - VIDEO PREPROCESSOR (Texas Instruments)
  • TL1220 - HYBRID TRANSFORMER (ETC)
Other Datasheets by E-SWITCH

Full PDF Text Transcription

Click to expand full text

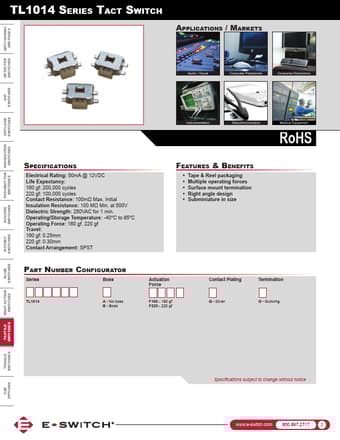

ANTI-VANDAL SWITCHES DETECTOR SWITCHES DIP SWITCHES KEYLOCK SWITCHES SWITCHES PUSHBUTTON NAVIGATION tl1014 SerieS tact Switch applicationS / marketS Audio / Visual Computer Peripherals Consumer Electronics Instrumentation Telecommunication Medical Equipment RoHS SpecificationS Electrical Rating: 50mA @ 12VDC Life Expectancy: 160 gf: 200,000 cycles 220 gf: 100,000 cycles Contact Resistance: 100mΩ Max. Initial Insulation Resistance: 100 MΩ Min. at 500V Dielectric Strength: 250VAC for 1 min. Operating/Storage Temperature: -40°C to 85°C Operating Force: 160 gf, 220 gf Travel: 160 gf: 0.25mm 220 gf: 0.
