SN74LV14A - Hex Schmitt-Trigger Inverter

Texas Instruments

The SN74LV14A by Texas Instruments is a Hex Schmitt-Trigger Inverter. Below is the official datasheet preview.

📥 Download Datasheet

SN74LV14A Hex Schmitt-Trigger Inverter by Texas Instruments - Datasheet Preview — Official preview page of the SN74LV14A Hex Schmitt-Trigger Inverter datasheet (Texas Instruments).

Datasheet Details

Part number	SN74LV14A
Manufacturer	Texas Instruments
File Size	1.99 MB
Description	Hex Schmitt-Trigger Inverter
Datasheet	SN74LV14A-etcTI.pdf

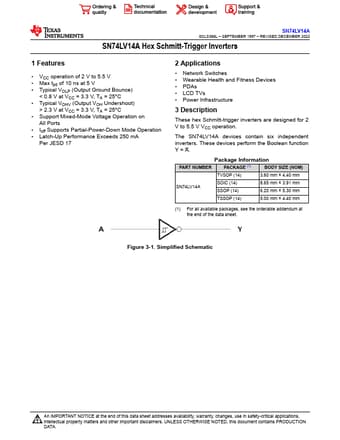

Additional preview pages of the SN74LV14A datasheet.

SN74LV14A Product details

Description

These hex Schmitt-trigger inverters are designed for 2 V to 5.5 V VCC operation.

Features

VCC operation of 2 V to 5.5 V.
Max tpd of 10 ns at 5 V.
Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25°C.
Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25°C.
Support Mixed-Mode Voltage Operation on All Ports.
Ioff Supports Partial-Power-Down Mode Operation.
Latch-Up Performance Exceeds 250 mA Per JESD 17 2.
