PTB48511, PTB48510 - DUAL COMPLEMENTARY-OUTPUT DC/DC CONVERTER

Texas Instruments

The PTB48511 by Texas Instruments is a DUAL COMPLEMENTARY-OUTPUT DC/DC CONVERTER. Below is the official datasheet preview.

📥 Download Datasheet

PTB48511 DUAL COMPLEMENTARY-OUTPUT DC/DC CONVERTER by Texas Instruments - Datasheet Preview — Official preview page of the **PTB48511** DUAL COMPLEMENTARY-OUTPUT DC/DC CONVERTER datasheet (Texas Instruments).

Datasheet Details

Part number	PTB48511, PTB48510
Manufacturer	Texas Instruments
File Size	544.69 KB
Description	DUAL COMPLEMENTARY-OUTPUT DC/DC CONVERTER
Datasheet	PTB48510-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: PTB48511, PTB48510. Please refer to the document for exact specifications by model.

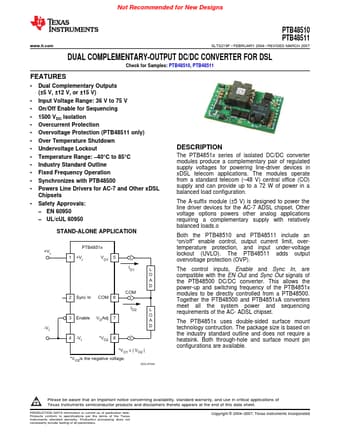

Additional preview pages of the PTB48511 datasheet.

PTB48511 Product details

Description

The PTB4851x series of isolated DC/DC converter modules produce a complementary pair of regulated supply voltages for powering line-driver devices in xDSL telecom applications. 48 V) central office (CO) supply and can provide up to a 72 W of power in a balanced load configuration.

Features

1.
Dual Complementary Outputs (±5 V, ±12 V, or ±15 V).
Input Voltage Range: 36 V to 75 V.
On/Off Enable for Sequencing.
1500 VDC Isolation.
Overcurrent Protection.
Overvoltage Protection (PTB48511 only).
Over Temperature Shutdown.
Undervoltage Lockout.
Temperature Range:.
40°C to 85°C.
Industry Standard Outline.
Fixed Frequency Operation.
Synchronizes with PTB48500.
Powers.
