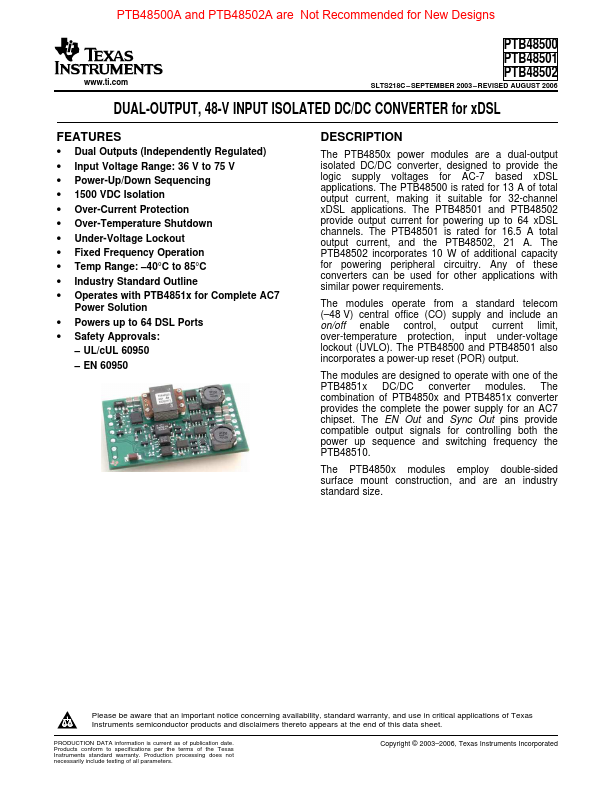

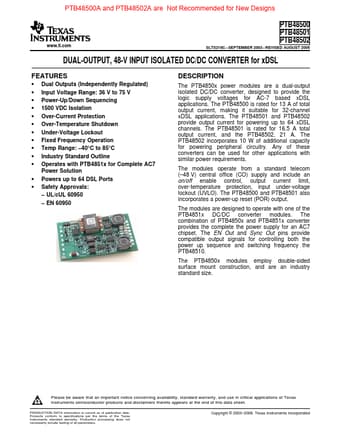

PTB48501, PTB48500 - 48-V INPUT ISOLATED DC/DC CONVERTER

Name: PTB48501
SKU: PTB48501-1572983

Texas Instruments

📥 Download Datasheet

PTB48501 Datasheet Preview — This datasheet PDF includes multiple part numbers: PTB48501, PTB48500. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	PTB48501, PTB48500
Manufacturer	Texas Instruments
File Size	505.43 KB
Description	48-V INPUT ISOLATED DC/DC CONVERTER
Datasheet	PTB48500-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: PTB48501, PTB48500. Please refer to the document for exact specifications by model.

PTB48501 Product details

Description

The PTB4850x power modules are a dual-output isolated DC/DC converter, designed to provide the logic supply voltages for AC-7 based xDSL applications.

Features

Dual Outputs (Independently Regulated).
Input Voltage Range: 36 V to 75 V.
Power-Up/Down Sequencing.
1500 VDC Isolation.
Over-Current Protection.
Over-Temperature Shutdown.
Under-Voltage Lockout.
Fixed Frequency Operation.
Temp Range:.
40°C to 85°C.
Industry Standard Outline.
Operates with PTB4851x for Complete AC7 Power Solution.
Powers up to 64 DSL Ports.
Safety Approva.
