PTB48510 - DUAL COMPLEMENTARY-OUTPUT DC/DC CONVERTER

Texas Instruments

📥 Download Datasheet

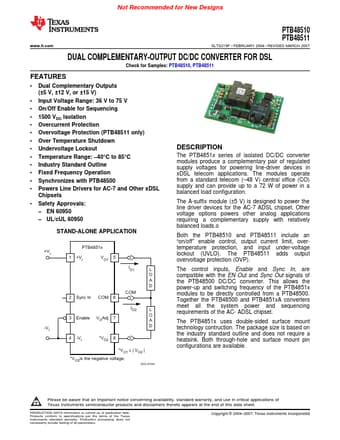

PTB48510 Datasheet Preview — Preview of PTB48510 PDF

Datasheet Details

Part number	PTB48510
Manufacturer	Texas Instruments
File Size	544.69 KB
Description	DUAL COMPLEMENTARY-OUTPUT DC/DC CONVERTER
Datasheet	PTB48510-etcTI.pdf

PTB48510 Product details

Description

The PTB4851x series of isolated DC/DC converter modules produce a complementary pair of regulated supply voltages for powering line-driver devices in xDSL telecom applications. 48 V) central office (CO) supply and can provide up to a 72 W of power in a balanced load configuration.

Features

1.
Dual Complementary Outputs (±5 V, ±12 V, or ±15 V).
Input Voltage Range: 36 V to 75 V.
On/Off Enable for Sequencing.
1500 VDC Isolation.
Overcurrent Protection.
Overvoltage Protection (PTB48511 only).
Over Temperature Shutdown.
Undervoltage Lockout.
Temperature Range:.
40°C to 85°C.
Industry Standard Outline.
Fixed Frequency Operation.
Synchronizes with PTB48500.
Powers.
