PGA112 - Zero-Drift Programmable Gain Amplifier

Texas Instruments

The PGA112 by Texas Instruments is a Zero-Drift Programmable Gain Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

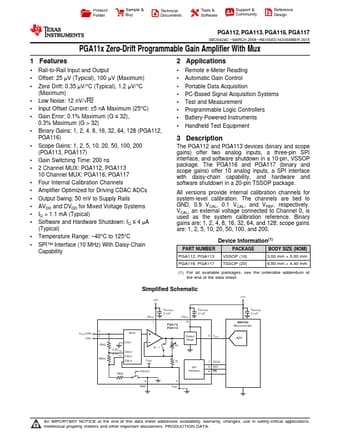

PGA112 Zero-Drift Programmable Gain Amplifier by Texas Instruments - Datasheet Preview — Official preview page of the **PGA112** Zero-Drift Programmable Gain Amplifier datasheet (Texas Instruments).

Datasheet Details

Part number	PGA112
Manufacturer	Texas Instruments
File Size	2.20 MB
Description	Zero-Drift Programmable Gain Amplifier
Datasheet	PGA112-etcTI.pdf
Additional preview pages of the PGA112 datasheet.

PGA112 Product details

Description

The PGA112 and PGA113 devices (binary and scope gains) offer two analog inputs, a three-pin SPI interface, and software shutdown in a 10-pin, VSSOP package.

Features

1 Rail-to-Rail Input and Output.
Offset: 25 μV (Typical), 100 μV (Maximum).
Zerø Drift: 0.35 μV/°C (Typical), 1.2 μV/°C (Maximum).
Low Noise: 12 nV/√Hz.
Input Offset Current: ±5 nA Maximum (25°C).
Gain Error: 0.1% Maximum (G ≤ 32), 0.3% Maximum (G > 32).
Binary Gains: 1, 2, 4, 8, 16, 32, 64, 128 (PGA112, PGA116).
Scope Gains: 1, 2, 5, 10, 20, 50, 100, 200 (PGA113, PGA117).
Gain Switching Time: 200 ns.
2 Cha.
