OPA2828, OPA828 JFET-Input Operational Amplifiers

OPA2828 Description

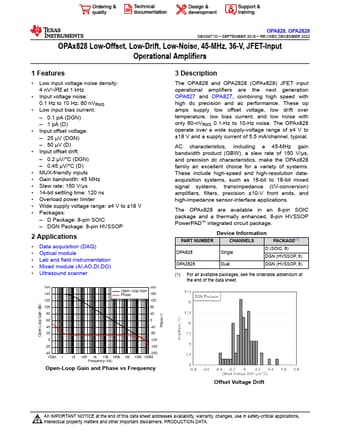

OPA828, OPA2828 SBOS671D * SEPTEMBER 2018 * REVISED DECEMBER 2022 OPAx828 Low-Offset, Low-Drift, Low-Noise, 45-MHz, 36-V, JFET-Input O.
The OPA828 and OPA2828 (OPAx828) JFET input operational amplifiers are the next generation OPA627 and OPA827, combining high speed with high dc preci.

OPA2828 Features

* Low input voltage noise density: 4 nV/√Hz at 1 kHz
* Input voltage noise: 0.1 Hz to 10 Hz: 60 nVRMS
* Low input bias current:
* 0.1 pA (DGN)
* 1 pA (D)
* Input offset voltage:
* 25 μV (DGN)
* 50 μV (D)
* Input offset drift:

OPA2828 Applications

* Data acquisition (DAQ)
* Optical module
* Lab and field instrumentation
* Mixed module (AI,AO,DI,DO)
* Ultrasound scanner 160 200 Open Loop Gain 140 Phase 160 120 120 100 80 80 40 60 0 40 -40 20 -80 0 -120 -20 -160 -40 100m 1 -200 10

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA2828, OPA828. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA2828, OPA828
Manufacturer
Texas Instruments ↗
File Size
3.04 MB
Datasheet
OPA828-etcTI.pdf
Description
JFET-Input Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: OPA2828, OPA828.
Please refer to the document for exact specifications by model.
