OPA2822, OPA2822_Burr Low-Power / Single-Supply / Wideband Operational Amplifier

OPA2822 Description

OPA830 SBOS263B * AUGUST 2004 * REVISED JANUARY 2005 Low-Power, Single-Supply, Wideband Operational Amplifier .
The OPA830 is a low-power, single-supply, wideband, voltage-feedback amplifier designed to operate on a single +3V or +5V supply.

OPA2822 Features

* D D D D D D D D HIGH BANDWIDTH: 250MHz (G = +1) 110MHz (G = +2) LOW SUPPLY CURRENT: 3.9mA (VS = +5V) FLEXIBLE SUPPLY RANGE: ±1.4V to ±5.5V Dual Supply +2.8V to +11V Single Supply INPUT RANGE INCLUDES GROUND ON SINGLE SUPPLY 4.88V OUTPUT SWING ON +5V SUPPLY HIGH SLEW RATE: 550V/ns LOW INPUT VOLTAGE N

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: OPA2822, OPA2822_Burr. Please refer to the document for exact specifications by model.

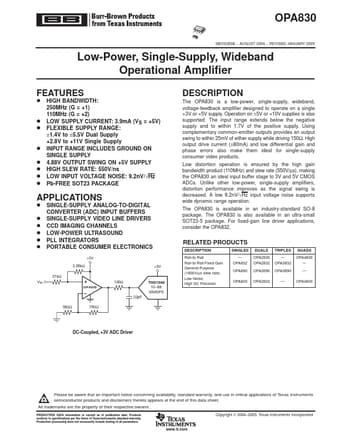

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
OPA2822, OPA2822_Burr
Manufacturer
Burr-Brown
File Size
460.31 KB
Datasheet
OPA2822_Burr-BrownCorporation.pdf
Description
Low-Power / Single-Supply / Wideband Operational Amplifier
Note
This datasheet PDF includes multiple part numbers: OPA2822, OPA2822_Burr.
Please refer to the document for exact specifications by model.
