LMP7721 - 3-Femtoampere Input Bias Current Precision Amplifier

Texas Instruments

The LMP7721 by Texas Instruments is a 3-Femtoampere Input Bias Current Precision Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

LMP7721 3-Femtoampere Input Bias Current Precision Amplifier by Texas Instruments - Datasheet Preview — Official preview page of the LMP7721 3-Femtoampere Input Bias Current Precision Amplifier datasheet (Texas Instruments).

Datasheet Details

Part number	LMP7721
Manufacturer	Texas Instruments
File Size	1.21 MB
Description	3-Femtoampere Input Bias Current Precision Amplifier
Datasheet	LMP7721-etcTI.pdf

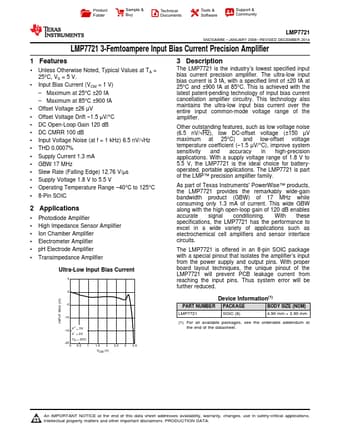

Additional preview pages of the LMP7721 datasheet.

LMP7721 Product details

Description

The LMP7721 is the industry’s lowest specified input bias current precision amplifier.

Features

1 Unless Otherwise Noted, Typical Values at TA = 25°C, VS = 5 V.
Input Bias Current (VCM = 1 V).
Maximum at 25°C ±20 fA.
Maximum at 85°C ±900 fA.
Offset Voltage ±26 µV.
Offset Voltage Drift.
1.5 μV/°C.
DC Open-Loop Gain 120 dB.
DC CMRR 100 dB.
Input Voltage Noise (at f = 1 kHz) 6.5 nV/√Hz.
THD 0.0007%.
Supply Current 1.3 mA.
GBW 17 MHz.
Slew Rate (Falling Edge) 12.76 V/μs.
