LMP7704, LMP7702 - Wide Supply Range Amplifiers

National Semiconductor

The LMP7704 by National Semiconductor is a Wide Supply Range Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

LMP7704 Wide Supply Range Amplifiers by National Semiconductor - Datasheet Preview — Official preview page of the **LMP7704** Wide Supply Range Amplifiers datasheet (National Semiconductor).

Datasheet Details

Part number	LMP7704, LMP7702
Manufacturer	National Semiconductor
File Size	1.39 MB
Description	Wide Supply Range Amplifiers
Datasheet	LMP7702_NationalSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: LMP7704, LMP7702. Please refer to the document for exact specifications by model.

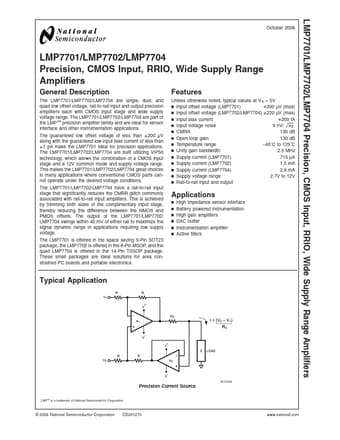

Additional preview pages of the LMP7704 datasheet.

LMP7704 Product details

Description

The LMP7701/LMP7702/LMP7704 are single, dual, and quad low offset voltage, rail-to-rail input and output precision amplifiers each with CMOS input stage and wide supply voltage range.

Features

Unless otherwise noted, typical values at VS = 5V ± 200 µV (max) n Input offset voltage (LMP7701) n Input offset voltage (LMP7702/LMP7704) ± 220 µV (max) ± 200 fA n Input bias current n Input voltage noise 9 nV/ n CMRR 130 dB n Open loop gain 130 dB n Temperature range.
40˚C to 125˚C n Unity gain bandwidth 2.5 MHz n Supply current (LMP7701) 715 µA n Supply current (LMP7702) 1.5 mA n Supply current (LMP7704) 2.9 mA n Supply voltage range 2.7V to 12V n Rail-to-rail input and output Applic.
