LMP7708, LMP7707 - Wide Supply Range Decompensated Amplifiers

Texas Instruments

The LMP7708 by Texas Instruments is a Wide Supply Range Decompensated Amplifiers. Below is the official datasheet preview.

📥 Download Datasheet

LMP7708 Wide Supply Range Decompensated Amplifiers by Texas Instruments - Datasheet Preview — Official preview page of the **LMP7708** Wide Supply Range Decompensated Amplifiers datasheet (Texas Instruments).

Datasheet Details

Part number	LMP7708, LMP7707
Manufacturer	Texas Instruments
File Size	1.86 MB
Description	Wide Supply Range Decompensated Amplifiers
Datasheet	LMP7707-etcTI.pdf
Note	This datasheet PDF includes multiple part numbers: LMP7708, LMP7707. Please refer to the document for exact specifications by model.

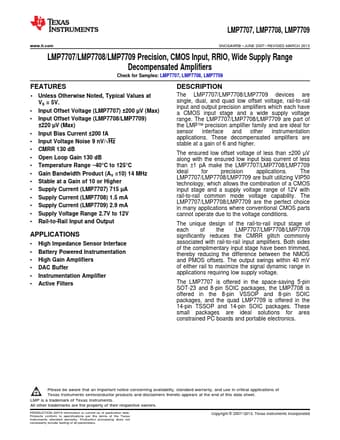

Additional preview pages of the LMP7708 datasheet.

LMP7708 Product details

Description

The LMP7707/LMP7708/LMP7709 devices are single, dual, and quad low offset voltage, rail-to-rail input and output precision amplifiers which each have a CMOS input stage and a wide supply voltage range.

Features

1.
23 Unless Otherwise Noted, Typical Values at VS = 5V.
Input Offset Voltage (LMP7707) ±200 µV (Max).
Input Offset Voltage (LMP7708/LMP7709) ±220 µV (Max).
Input Bias Current ±200 fA.
Input Voltage Noise 9 nV/√Hz.
CMRR 130 dB.
Open Loop Gain 130 dB.
Temperature Range.
40°C to 125°C.
Gain Bandwidth Product (AV =10) 14 MHz.
Stable at a Gain of 10 or Higher.
Supply Current (LMP7707) 715 µA.
