LMH0044 - SMPTE 292M / 259M Adaptive Cable Equalizer

Texas Instruments

The LMH0044 by Texas Instruments is a SMPTE 292M / 259M Adaptive Cable Equalizer. Below is the official datasheet preview.

📥 Download Datasheet

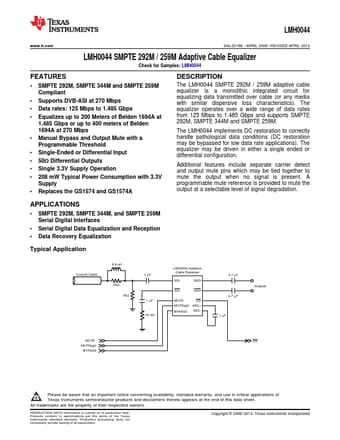

LMH0044 SMPTE 292M / 259M Adaptive Cable Equalizer by Texas Instruments - Datasheet Preview — Official preview page of the **LMH0044** SMPTE 292M / 259M Adaptive Cable Equalizer datasheet (Texas Instruments).

Datasheet Details

Part number	LMH0044
Manufacturer	Texas Instruments
File Size	376.50 KB
Description	SMPTE 292M / 259M Adaptive Cable Equalizer
Datasheet	LMH0044-etcTI.pdf
Additional preview pages of the LMH0044 datasheet.

LMH0044 Product details

Description

The LMH0044 SMPTE 292M / 259M adaptive cable equalizer is a monolithic integrated circuit for equalizing data transmitted over cable (or any media with similar dispersive loss characteristics).

Features

1.
2 SMPTE 292M, SMPTE 344M and SMPTE 259M Compliant.
Supports DVB-ASI at 270 Mbps.
Data rates: 125 Mbps to 1.485 Gbps.
Equalizes up to 200 Meters of Belden 1694A at 1.485 Gbps or up to 400 meters of Belden 1694A at 270 Mbps.
Manual Bypass and Output Mute with a Programmable Threshold.
Single-Ended or Differential Input.
50Ω Differential Outputs.
Single 3.3V Supply Operation.
208 mW Typical Power Consumption with 3.3.
