LMH0046 - HD/SD SDI Reclocker

Description

The LMH0046 HD/SD SDI Reclocker retimes serial digital video data conforming to the SMPTE 292M and SMPTE 259M (A & C) standards.

The LMH0046 operates at serial data rates of 143 Mbps, 270 Mbps, 1.483 Gbps and 1.485 Gbps.

The LMH0046 supports DVB-ASI operation at 270 Mbps.

Features

  • 1.
  • 2 Supports SMPTE 292M and SMPTE 259M (A & C) Serial Digital Video Standards.
  • Supports 143 Mbps, 270 Mbps, 1.483 Gbps, and 1.485 Gbps Serial Data Rate Operation.
  • Supports DVB-ASI at 270 Mbps.
  • Single 3.3V Supply Operation.
  • 330 mW Typical Power Consumption.
  • Two Differential, Reclocked Outputs.
  • Choice of Second Reclocked Output or Low- Jitter, Differential, Data-Rate Clock Output.
  • Single 27 MHz External Crystal or Reference Cl.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
LMH0046 HD/SD Multi-Rate Serial Digital Video Data Reclocker National Semiconductor
LMH0040 DVB-ASI SDI Serializer/Driver National Semiconductor
LMH0041 DVB-ASI SDI Deserializer National Semiconductor
LMH0044 Adaptive Cable Equalizer National Semiconductor
LMH0002 Digital Cable Driver National Semiconductor

Other Datasheets by Texas Instruments

Part Number Description
LMH0040 DVB-ASI SDI Serializer and Cable Driver
LMH0041 SDI Deserializer
LMH0044 SMPTE 292M / 259M Adaptive Cable Equalizer
LMH0001 Digital Cable Driver
LMH0002 SMPTE 292M / 259M Serial Digital Cable Driver

Full PDF Text Transcription

Click to expand full text

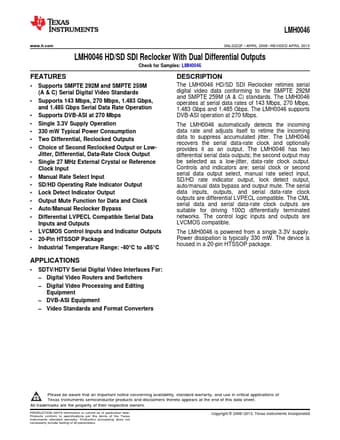

LMH0046 www.ti.com SNLS222F – APRIL 2006 – REVISED APRIL 2013 LMH0046 HD/SD SDI Reclocker With Dual Differential Outputs Check for Samples: LMH0046 FEATURES 1 •2 Supports SMPTE 292M and SMPTE 259M (A & C) Serial Digital Video Standards • Supports 143 Mbps, 270 Mbps, 1.483 Gbps, and 1.485 Gbps Serial Data Rate Operation • Supports DVB-ASI at 270 Mbps • Single 3.
