LMH0030 - Digital Video Serializer

National Semiconductor

📥 Download Datasheet

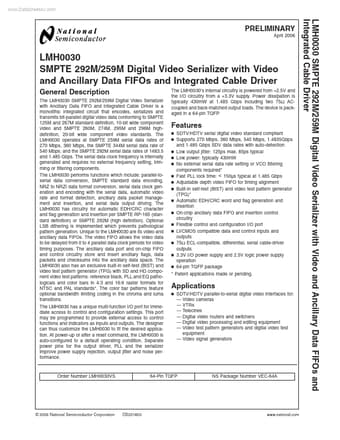

LMH0030 Datasheet Preview — Preview of LMH0030 PDF

Datasheet Details

Part number	LMH0030
Manufacturer	National Semiconductor
File Size	758.61 KB
Description	Digital Video Serializer
Datasheet	LMH0030_NationalSemiconductor.pdf

LMH0030 Product details

Description

The LMH0030 SMPTE 292M/259M Digital Video Serializer with Ancillary Data FIFO and Integrated Cable Driver is a monolithic integrated circuit that encodes, serializes and transmits bit-parallel digital video data conforming to SMPTE 125M and 267M standard definition, 10-bit wide component video and SMPTE 260M, 274M, 295M and 296M highdefinition, 20-bit wide component video standards.

Features

n SDTV/HDTV serial digital video standard compliant n Supports 270 Mbps, 360 Mbps, 540 Mbps, 1.4835Gbps and 1.485 Gbps SDV data rates with auto-detection n Low output jitter: 125ps max, 85ps typical n Low power: typically 430mW n No external serial data rate setting or VCO filtering components required.
n Fast PLL lock time: < 150µs typical at 1.485 Gbps n Adjustable depth video FIFO for timing alignment n Built-in self-test (BIST) and video test pattern generator (TPG).
n Automatic EDH/.
