LM98555 - CCD Driver

The LM98555 by Texas Instruments is a CCD Driver. Below is the official datasheet preview.

📥 Download Datasheet

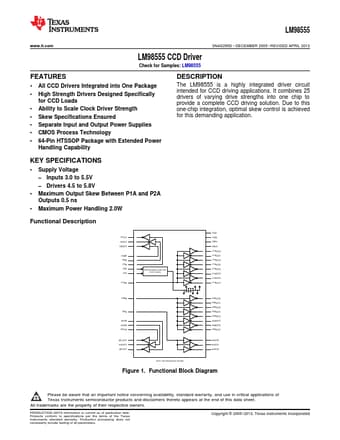

Official preview page of the LM98555 CCD Driver datasheet (Texas Instruments).

Datasheet Details

Part number LM98555
Manufacturer Texas Instruments
File Size 303.05 KB
Description CCD Driver
Datasheet download datasheet LM98555-etcTI.pdf
Additional preview pages of the LM98555 datasheet.

LM98555 Product details

Description

The LM98555 is a highly integrated driver circuit intended for CCD driving applications. Supply Voltage Inputs 3.0 to 5.5V Drivers 4.5 to 5.8V Maximum Output Skew Between P1A and P2A Outputs 0.5 ns Maximum Power Handling 2.

Features
