LM9811 - 10-Bit Greyscale/30-Bit Color Linear CCD Sensor Processor

National Semiconductor

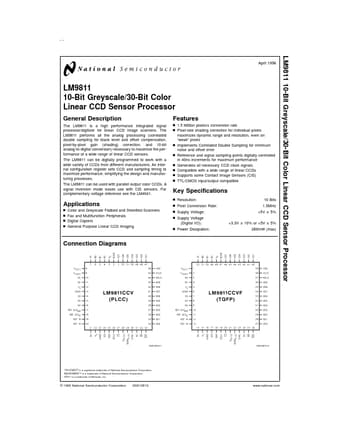

The LM9811 by National Semiconductor is a 10-Bit Greyscale/30-Bit Color Linear CCD Sensor Processor. Below is the official datasheet preview.

📥 Download Datasheet

LM9811 10-Bit Greyscale/30-Bit Color Linear CCD Sensor Processor by National Semiconductor - Datasheet Preview — Official preview page of the **LM9811** 10-Bit Greyscale/30-Bit Color Linear CCD Sensor Processor datasheet (National Semiconductor).

Datasheet Details

Part number	LM9811
Manufacturer	National Semiconductor
File Size	605.53 KB
Description	10-Bit Greyscale/30-Bit Color Linear CCD Sensor Processor
Datasheet	LM9811_NationalSemiconductor.pdf
Additional preview pages of the LM9811 datasheet.

LM9811 Product details

Description

The LM9811 is a high performance integrated signal processor/digitizer for linear CCD image scanners.

Features

n 1.5 Million pixels/s conversion rate n Pixel-rate shading correction for individual pixels maximizes dynamic range and resolution, even on “weak” pixels n Implements Correlated Double Sampling for minimum noise and offset error n Reference and signal sampling points digitally controlled in 40ns increments for maximum performance n Generates all necessary CCD clock signals n Compatible with a wide range of linear CCDs n Supports some Contact Image Sensors (CIS) n TTL/CMOS input/output compatibl.
