LM2695 - Step Down Switching Regulator

Texas Instruments

The LM2695 by Texas Instruments is a Step Down Switching Regulator. Below is the official datasheet preview.

📥 Download Datasheet

LM2695 Step Down Switching Regulator by Texas Instruments - Datasheet Preview — Official preview page of the LM2695 Step Down Switching Regulator datasheet (Texas Instruments).

Datasheet Details

Part number	LM2695
Manufacturer	Texas Instruments
File Size	1.09 MB
Description	Step Down Switching Regulator
Datasheet	LM2695-etcTI.pdf

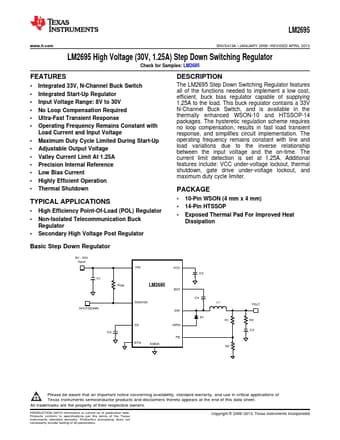

Additional preview pages of the LM2695 datasheet.

LM2695 Product details

Description

The LM2695 Step Down Switching Regulator

Features

1.
2 Integrated 33V, N-Channel Buck Switch.
Integrated Start-Up Regulator.
Input Voltage Range: 8V to 30V.
No Loop Compensation Required.
Ultra-Fast Transient Response.
Operating Frequency Remains Constant with Load Current and Input Voltage.
Maximum Duty Cycle Limited During Start-Up.
Adjustable Output Voltage.
Valley Current Limit At 1.25A.
Precision Internal Reference.
Low Bias Current.
