LDC1612 - Multi-Channel 28-Bit Inductance to Digital Converter

Texas Instruments

The LDC1612 by Texas Instruments is a Multi-Channel 28-Bit Inductance to Digital Converter. Below is the official datasheet preview.

📥 Download Datasheet

LDC1612 Multi-Channel 28-Bit Inductance to Digital Converter by Texas Instruments - Datasheet Preview — Official preview page of the LDC1612 Multi-Channel 28-Bit Inductance to Digital Converter datasheet (Texas Instruments).

Datasheet Details

Part number	LDC1612
Manufacturer	Texas Instruments
File Size	1.77 MB
Description	Multi-Channel 28-Bit Inductance to Digital Converter
Datasheet	LDC1612-etcTI.pdf

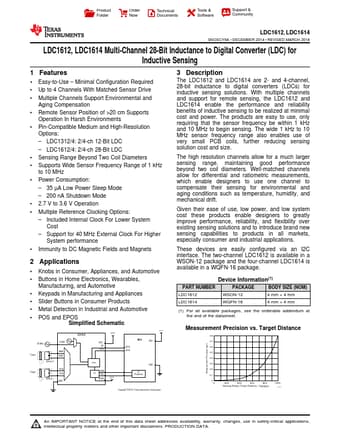

Additional preview pages of the LDC1612 datasheet.

LDC1612 Product details

Description

The LDC1612 and LDC1614 are 2- and 4-channel, 28-bit inductance to digital converters (LDCs) for inductive sensing solutions.

Features

1 Easy-to-Use.
Minimal Configuration Required.
Up to 4 Channels With Matched Sensor Drive.
Multiple Channels Support Environmental and Aging Compensation.
Remote Sensor Position of >20 cm Supports Operation In Harsh Environments.
Pin-Compatible Medium and High-Resolution Options:.
LDC1312/4: 2/4-ch 12-Bit LDC.
LDC1612/4: 2/4-ch 28-Bit LDC.
Sensing Range Beyond Two Coil Diameters.
Supports Wide Sensor Freque.
