LDC1041 - Inductance to Digital Converter

Name: LDC1041
SKU: LDC1041-1413306

Texas Instruments

📥 Download Datasheet

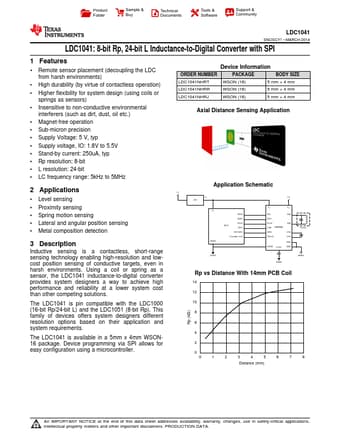

LDC1041 Datasheet Preview — Preview of LDC1041 PDF

Datasheet Details

Part number	LDC1041
Manufacturer	Texas Instruments
File Size	3.03 MB
Description	Inductance to Digital Converter
Datasheet	LDC1041-etcTI.pdf

LDC1041 Product details

Description

Inductive sensing is a contactless, short-range sensing technology enabling high-resolution and lowcost position sensing of conductive targets, even in harsh environments.

Features

1 Remote sensor placement (decoupling the LDC from harsh environments).
High durability (by virtue of contactless operation).
Higher flexibility for system design (using coils or springs as sensors).
Insensitive to non-conductive environmental interferers (such as dirt, dust, oil etc. ).
Magnet-free operation.
Sub-micron precision.
Supply Voltage: 5 V, typ.
Supply voltage, IO: 1.8V to 5.5V.
Stand-by current: 250uA, t.
