LDC1051 - 8-bit Rp only Inductance-to-Digital Converter

Texas Instruments

The LDC1051 by Texas Instruments is a 8-bit Rp only Inductance-to-Digital Converter. Below is the official datasheet preview.

📥 Download Datasheet

LDC1051 8-bit Rp only Inductance-to-Digital Converter by Texas Instruments - Datasheet Preview — Official preview page of the **LDC1051** 8-bit Rp only Inductance-to-Digital Converter datasheet (Texas Instruments).

Datasheet Details

Part number	LDC1051
Manufacturer	Texas Instruments
File Size	3.01 MB
Description	8-bit Rp only Inductance-to-Digital Converter
Datasheet	LDC1051-etcTI.pdf

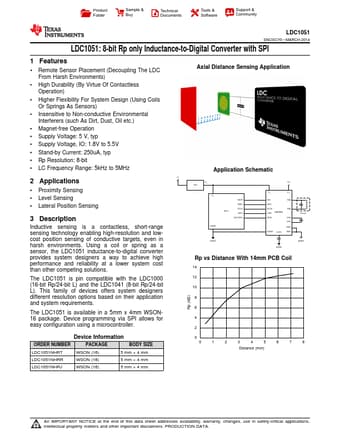

Additional preview pages of the LDC1051 datasheet.

LDC1051 Product details

Description

INT/GPIO INTB CFA CFB Inductive sensing is a contactless, short-range DGND GND sensing technology enabling high-resolution and low- DGND CLDO DAP cost position sensing of conductive targets, even in harsh environments.Using a coil or spring as a sensor, the LDC1051 inductance-to-digital converter DGND DGND AGND provides system designers a way to achieve high performance and reliability at a lower system cost than other competing solutions.Rp vs Distance With 14mm PCB Coil 14 Th

Features

1 Remote Sensor Placement (Decoupling The LDC From Harsh Environments).
High Durability (By Virtue Of Contactless Operation).
Higher Flexibility For System Design (Using Coils Or Springs As Sensors).
Insensitive to Non-conductive Environmental Interferers (such As Dirt, Dust, Oil etc. ).
Magnet-free Operation.
Supply Voltage: 5 V, typ.
Supply Voltage, IO: 1.8V to 5.5V.
Stand-by Current: 250uA, typ.
Rp Resolution: 8-b.
