ISO7720 - Reinforced and Basic Dual-Channel Digital Isolators

Name: ISO7720
SKU: ISO7720-1509868

Texas Instruments

📥 Download Datasheet

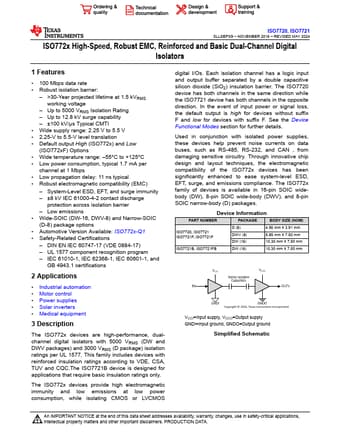

ISO7720 Datasheet Preview — Preview of ISO7720 PDF

Datasheet Details

Part number	ISO7720
Manufacturer	Texas Instruments
File Size	2.35 MB
Description	Reinforced and Basic Dual-Channel Digital Isolators
Datasheet	ISO7720-etcTI.pdf

ISO7720 Product details

Description

The ISO772x devices are high-performance, dualchannel digital isolators with 5000 VRMS (DW and DWV packages) and 3000 VRMS (D package) isolation ratings per UL 1577.

Features

100 Mbps data rate.
Robust isolation barrier:.
>30-Year projected lifetime at 1.5 kVRMS working voltage.
Up to 5000 VRMS Isolation Rating.
Up to 12.8 kV surge capability.
±100 kV/μs Typical CMTI.
Wide supply range: 2.25 V to 5.5 V.
2.25-V to 5.5-V level translation.
Default output High (ISO772x) and Low (ISO772xF) Options.
Wide temperature range:.
55°C to +125°C.
Low power consumption, typ.
