ISO7721-Q1 - Reinforced Dual-Channel Digital Isolators

Download the ISO7721-Q1 datasheet PDF. This datasheet also covers the ISO7720-Q1 variant, as both devices belong to the same reinforced dual-channel digital isolators family and are provided as variant models within a single manufacturer datasheet.

Description

The ISO772x-Q1 devices are high-performance, dualchannel digital isolators with 5000 V RMS (DW package) and 3000 V RMS (D package) isolation ratings per UL 1577.

This family includes devices with reinforced insulation ratings according to VDE, CSA, TUV and CQC.

Features

  • Qualified for automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ISO7720-Q1-etcTI.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ISO-1001 0-+/-10VDC or 0-5V AC Signal Converter YUAN
ISO-200RMS-P2-O8 200mV AC or DC Small Signal Conversion YUAN
ISO-A1-Px-Ox Dual Isolated Transmitter Shenzhen Sunyuan
ISO-A2-Px-Ox Dual Isolated Transmitter Shenzhen Sunyuan
ISO-A3-Px-Ox Dual Isolated Transmitter Shenzhen Sunyuan

Other Datasheets by Texas Instruments

Part Number Description
ISO7721 Reinforced and Basic Dual-Channel Digital Isolators
ISO7720 Reinforced and Basic Dual-Channel Digital Isolators
ISO7720-Q1 Reinforced Dual-Channel Digital Isolators
ISO7710 Robust EMC Reinforced Single-Channel Digital Isolator
ISO7710-Q1 Robust EMC Reinforced Single-Channel Digital Isolator

Full PDF Text Transcription

Click to expand full text

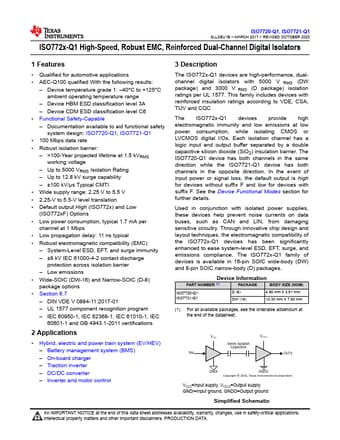

www.ti.com ISO7720-Q1, ISO7721-Q1 SLLSEU1B – MARCH 2I0S1O7 7– 7R2E0V-ISQE1D, OISCOTO7B7E2R12-Q0210 SLLSEU1B – MARCH 2017 – REVISED OCTOBER 2020 ISO772x-Q1 High-Speed, Robust EMC, Reinforced Dual-Channel Digital Isolators 1 Features • Qualified for automotive applications • AEC-Q100 qualified With the following results: – Device temperature grade 1: –40°C to +125°C ambient operating temperature range – Device HBM ESD classification level 3A – Device CDM ESD classification level C6 • Functional Safety-Capable – Documentation available to aid functional safety system design: ISO7720-Q1, ISO7721-Q1 • 100 Mbps data rate • Robust isolation barrier: – >100-Year projected lifetime at 1.5 kVRMS working voltage – Up to 5000 VRMS Isolation Rating – Up to 12.
