ISO5852S - High-CMTI 2.5-A and 5-A Reinforced Isolated IGBT MOSFET Gate Driver

Texas Instruments

The ISO5852S by Texas Instruments is a High-CMTI 2.5-A and 5-A Reinforced Isolated IGBT MOSFET Gate Driver. Below is the official datasheet preview.

📥 Download Datasheet

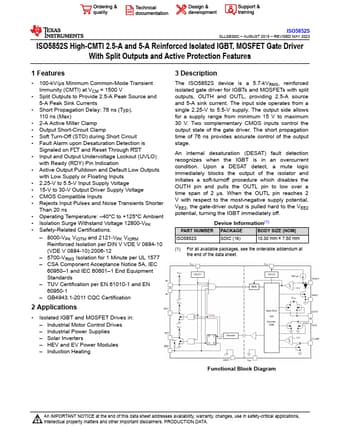

ISO5852S High-CMTI 2.5-A and 5-A Reinforced Isolated IGBT MOSFET Gate Driver by Texas Instruments - Datasheet Preview — Official preview page of the **ISO5852S** High-CMTI 2.5-A and 5-A Reinforced Isolated IGBT MOSFET Gate Driver datasheet (Texas Instruments).

Datasheet Details

Part number	ISO5852S
Manufacturer	Texas Instruments
File Size	2.51 MB
Description	High-CMTI 2.5-A and 5-A Reinforced Isolated IGBT MOSFET Gate Driver
Datasheet	ISO5852S-etcTI.pdf
Additional preview pages of the ISO5852S datasheet.

ISO5852S Product details

Description

The ISO5852S device is a 5.7-kVRMS, reinforced isolated gate driver for IGBTs and MOSFETs with split outputs, OUTH and OUTL, providing 2.5-A source and 5-A sink current.

Features

1 Features.
100-kV/μs Minimum Common-Mode Transient Immunity (CMTI) at VCM = 1500 V.
Split Outputs to Provide 2.5-A Peak Source and 5-A Peak Sink Currents.
Short Propagation Delay: 76 ns (Typ), 110 ns (Max).
2-A Active Miller Clamp.
Output Short-Circuit Clamp.
Soft Turn-Off (STO) during Short Circuit.
Fault Alarm upon Desaturation Detection is Signaled on FLT and Reset Through RST.
Input and Output Undervoltage Lockout (UVL.
