ISO5452 - High-CMTI 2.5-A and 5-A Isolated IGBT MOSFET Gate Driver

Texas Instruments

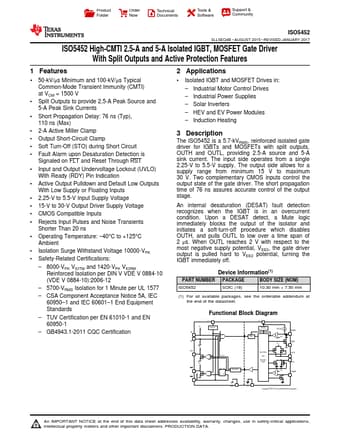

The ISO5452 by Texas Instruments is a High-CMTI 2.5-A and 5-A Isolated IGBT MOSFET Gate Driver. Below is the official datasheet preview.

📥 Download Datasheet

ISO5452 High-CMTI 2.5-A and 5-A Isolated IGBT MOSFET Gate Driver by Texas Instruments - Datasheet Preview — Official preview page of the **ISO5452** High-CMTI 2.5-A and 5-A Isolated IGBT MOSFET Gate Driver datasheet (Texas Instruments).

Datasheet Details

Part number	ISO5452
Manufacturer	Texas Instruments
File Size	1.12 MB
Description	High-CMTI 2.5-A and 5-A Isolated IGBT MOSFET Gate Driver
Datasheet	ISO5452-etcTI.pdf
Additional preview pages of the ISO5452 datasheet.

ISO5452 Product details

Description

The ISO5452 is a 5.7-kVRMS, reinforced isolated gate driver for IGBTs and MOSFETs with split outputs, OUTH and OUTL, providing 2.5-A source and 5-A sink current.

Features

1 Features.
1 50-kV/μs Minimum and 100-kV/μs Typical Common-Mode Transient Immunity (CMTI) at VCM = 1500 V.
Split Outputs to provide 2.5-A Peak Source and 5-A Peak Sink Currents.
Short Propagation Delay: 76 ns (Typ), 110 ns (Max).
2-A Active Miller Clamp.
Output Short-Circuit Clamp.
Soft Turn-Off (STO) during Short Circuit.
Fault Alarm upon Desaturation Detection is Signaled on FLT and Reset Through RST.
Input and Output Und.
