ISO35M, ISO15 3.3-V Half- and Full-Duplex RS-485 Transceivers

ISO35M Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community ISO15, ISO35, ISO15M, ISO35M SLOS580G * MAY 2008 The ISO15 is an isolated half-duplex differential line transceiver while the ISO35 is an isolated full-duplex differential line driver and receiver fo.

ISO35M Features

* 1 Meets or Exceeds TIA/EIA RS-485 Requirements
* 1/8 Unit Load
* Up to 256 Nodes on a Bus
* Signaling Rates up to 1 Mbps
* Thermal Shutdown Protection
* Low Bus Capacitance
* 16 pF (Typical)
* 50 kV/μs Typical Transient Immunity

ISO35M Applications

* Security Systems
* Chemical Production
* Factory Automation
* Motor and Motion Control
* HVAC and Building Automation Networks

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO35M, ISO15. Please refer to the document for exact specifications by model.

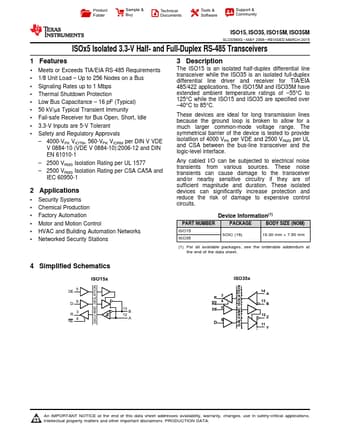

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO35M, ISO15
Manufacturer
Texas Instruments ↗
File Size
1.76 MB
Datasheet
ISO15-etcTI.pdf
Description
3.3-V Half- and Full-Duplex RS-485 Transceivers
Note
This datasheet PDF includes multiple part numbers: ISO35M, ISO15.
Please refer to the document for exact specifications by model.
