ISO3086, ISO3080 5-V Full- and Half-Duplex RS-485 Transceivers

ISO3086 Description

Product Folder Order Now Technical Documents Tools & Software Support & Community Reference Design ISO3080, ISO3082, ISO3086, ISO3088 SLOS581I <.
The ISO3080 and ISO3086 devices are isolated fullduplex differential line drivers and receivers while the ISO3082 and ISO3088 devices are isolated hal.

ISO3086 Features

* 1 Meets or Exceeds TIA/EIA RS-485 Requirements
* Signaling Rates up to 20 Mbps
* 1/8 Unit Load
* Up to 256 Nodes on a Bus
* Thermal Shutdown Protection
* Low Bus Capacitance
* 16 pF (Typical)
* 50 kV/μs Typical Transient Immunity

ISO3086 Applications

* Security Systems
* Chemical Production
* Factory Automation
* Motor and Motion Control
* HVAC and Building Automation Networks

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ISO3086, ISO3080. Please refer to the document for exact specifications by model.

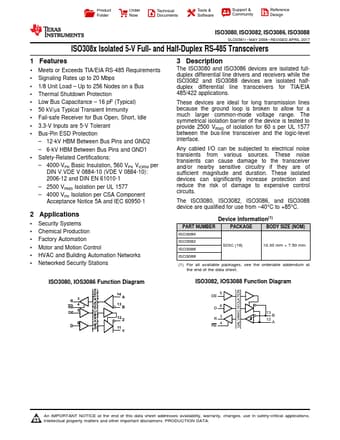

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ISO3086, ISO3080
Manufacturer
Texas Instruments ↗
File Size
1.31 MB
Datasheet
ISO3080-etcTI.pdf
Description
5-V Full- and Half-Duplex RS-485 Transceivers
Note
This datasheet PDF includes multiple part numbers: ISO3086, ISO3080.
Please refer to the document for exact specifications by model.
