DS91C180 - 100 MHz M-LVDS Line Driver/Receiver Pair

Texas Instruments

The DS91C180 by Texas Instruments is a 100 MHz M-LVDS Line Driver/Receiver Pair. Below is the official datasheet preview.

📥 Download Datasheet

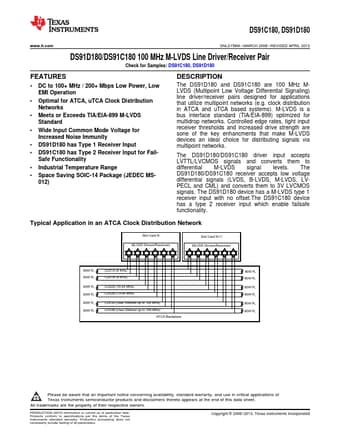

DS91C180 100 MHz M-LVDS Line Driver/Receiver Pair by Texas Instruments - Datasheet Preview — Official preview page of the **DS91C180** 100 MHz M-LVDS Line Driver/Receiver Pair datasheet (Texas Instruments).

Datasheet Details

Part number	DS91C180
Manufacturer	Texas Instruments
File Size	1.01 MB
Description	100 MHz M-LVDS Line Driver/Receiver Pair
Datasheet	DS91C180-etcTI.pdf
Additional preview pages of the DS91C180 datasheet.

DS91C180 Product details

Description

The DS91D180 and DS91C180 are 100 MHz MLVDS (Multipoint Low Voltage Differential Signaling) line driver/receiver pairs designed for applications that utilize multipoint networks (e.g.

Features

1.
2 DC to 100+ MHz / 200+ Mbps Low Power, Low EMI Operation.
Optimal for ATCA, uTCA Clock Distribution Networks.
Meets or Exceeds TIA/EIA-899 M-LVDS Standard.
Wide Input Common Mode Voltage for Increased Noise Immunity.
DS91D180 has Type 1 Receiver Input.
DS91C180 has Type 2 Receiver Input for Fail- Safe Functionality.
Industrial Temperature Range.
Space Saving SOIC-14 Package (JEDEC MS- 012).
