DS9105 - iButton Number Set

Dallas Semiconducotr

The DS9105 by Dallas Semiconducotr is a iButton Number Set. Below is the official datasheet preview.

📥 Download Datasheet

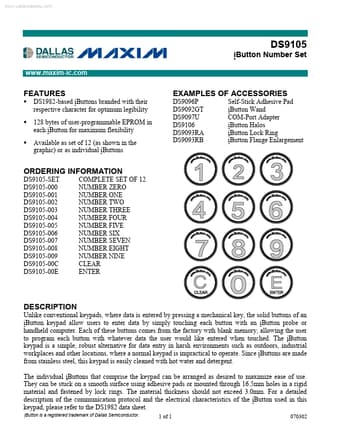

DS9105 iButton Number Set by Dallas Semiconducotr - Datasheet Preview — Official preview page of the **DS9105** iButton Number Set datasheet (Dallas Semiconducotr).

Datasheet Details

Part number	DS9105
Manufacturer	Dallas Semiconducotr
File Size	140.84 KB
Description	iButton Number Set
Datasheet	DS9105_DallasSemiconducotr.pdf
Additional preview pages of the DS9105 datasheet.

DS9105 Product details

Description

Unlike conventional keypads, where data is entered by pressing a mechanical key, the solid buttons of an iButton keypad allow users to enter data by simply touching each button with an iButton probe or handheld computer.

Features

DS1982-based iButtons branded with their respective character for optimum legibility 128 bytes of user-programmable EPROM in each iButton for maximum flexibility Available as set of 12 (as shown in the graphic) or as individual iButtons.
