DS9106 - Ibutton Halo

Maxim Integrated Products

The DS9106 by Maxim Integrated Products is a Ibutton Halo. Below is the official datasheet preview.

📥 Download Datasheet

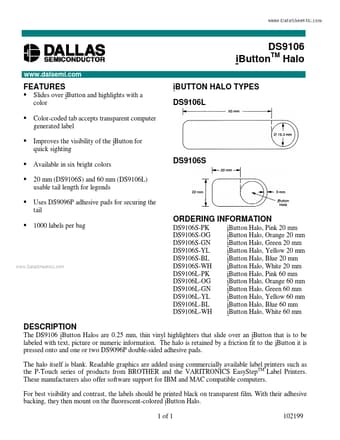

DS9106 Ibutton Halo by Maxim Integrated Products - Datasheet Preview — Official preview page of the **DS9106** Ibutton Halo datasheet (Maxim Integrated Products).

Datasheet Details

Part number	DS9106
Manufacturer	Maxim Integrated Products
File Size	62.36 KB
Description	Ibutton Halo
Datasheet	DS9106_MaximIntegratedProducts.pdf
Additional preview pages of the DS9106 datasheet.

DS9106 Product details

Description

The DS9106 iButton Halos are 0.25 mm, thin vinyl highlighters that slide over an iButton that is to be labeled with text, picture or numeric information.

Features

Slides over iButton and highlights with a color.
Color-coded tab accepts transparent computer generated label.
Improves the visibility of the iButton for quick sighting.
Available in six bright colors.
20 mm (DS9106S) and 60 mm (DS9106L) usable tail length for legends.
Uses DS9096P adhesive pads for securing the tail.
1000 labels per bag iBUTTON HALO TYPES DS9106L DS9106S.
