DAC60508 - Voltage-Output DAC

Texas Instruments

The DAC60508 by Texas Instruments is a Voltage-Output DAC. Below is the official datasheet preview.

📥 Download Datasheet

DAC60508 Voltage-Output DAC by Texas Instruments - Datasheet Preview — Official preview page of the **DAC60508** Voltage-Output DAC datasheet (Texas Instruments).

Datasheet Details

Part number	DAC60508
Manufacturer	Texas Instruments
File Size	4.87 MB
Description	Voltage-Output DAC
Datasheet	DAC60508-etcTI.pdf

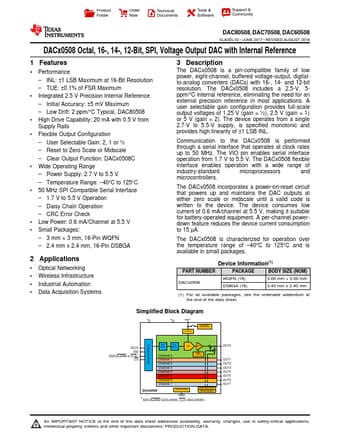

Additional preview pages of the DAC60508 datasheet.

DAC60508 Product details

Description

The DACx0508 is a pin-compatible family of low power, eight-channel, buffered voltage-output, digitalto-analog converters (DACs) with 16-, 14- and 12-bit resolution.

Features

1 Performance.
INL: ±1 LSB Maximum at 16-Bit Resolution.
TUE: ±0.1% of FSR Maximum.
Integrated 2.5 V Precision Internal Reference.
Initial Accuracy: ±5 mV Maximum.
Low Drift: 2 ppm/°C Typical, DAC80508.
High Drive Capability: 20 mA with 0.5 V from Supply Rails.
Flexible Output Configuration.
User Selectable Gain: 2, 1 or ½.
Reset to Zero Scale or Midscale.
Clear Output Function: DACx0508C.
