DAC-08 - 8-Bit High-Speed Multiplying D/A Converter

ON Semiconductor

📥 Download Datasheet

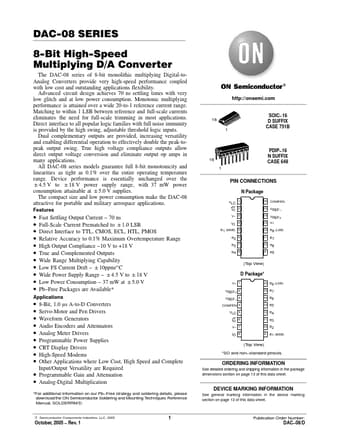

DAC-08 Datasheet Preview — Preview of DAC-08 PDF

Datasheet Details

Part number	DAC-08
Manufacturer	ON Semiconductor
File Size	137.75 KB
Description	8-Bit High-Speed Multiplying D/A Converter
Datasheet	DAC-08-ONSemiconductor.pdf

DAC-08 Product details

Description

Pin # N Package / D Package 1/5 2/6 3/7 4/8 5/9 6/10 7/11 8/12 9/13 10/14 11/15 12/16 13/1 14/2 15/3 16/4 Symbol VLC IO V IO B1 B2 B3 B4 B5 B6 B7 B8 V+ VREF+ VREF COMPEN Description Logic Control Voltage Inverted Output Current Negative Power Supply Non Inverted Output Current Output 1, Most Significant Bit (MSB) Output 2 Output 3 Output 4 Output 5 Output 6 Output 7 Output 8, Least Significant Bit (LSB) Positive Power Supply Positive Reference Voltage Negative Referen

Features

Fast Settling Output Current.
70 ns.
Full-Scale Current Prematched to "1.0 LSB.
Direct Interface to TTL, CMOS, ECL, HTL, PMOS.
Relative Accuracy to 0.1% Maximum Overtemperature Range.
High Output Compliance.
10 V to +18 V.
True and Complemented Outputs.
Wide Range Multiplying Capability.
Low FS Current Drift.
"10ppm/°C.
Wide Power Supply Range.
"4.5 V to "18 V.
Low Power.
