CSD95373BQ5M Synchronous Buck NexFET Smart Power Stage

CSD95373BQ5M Description

Product Folder Order Now Technical Documents Tools & Software Support & Community CSD95373BQ5M SLPS462A * JUNE 2014 * REVISED JUL.
The CSD95373BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density synchronous buck converter.

CSD95373BQ5M Features

* 1 45-A Continuous Operating Current Capability
* 92.7% System Efficiency at 25 A
* Low-Power Loss of 2.6 W at 25 A
* High-Frequency Operation (up to 1.25 MHz)
* Diode Emulation Mode With FCCM
* Temperature Compensated Bi-Directional Current Sense

CSD95373BQ5M Applications

* Multiphase Synchronous Buck Converters
* High-Frequency Applications
* High-Current, Optimized for Applications With a Wide Duty Cycle Range
* POL DC-DC Converters
* Memory and Graphic Cards
* Desktop and Server VR11.x / VR12.x V-core and Memory Sync

📥 Download Datasheet

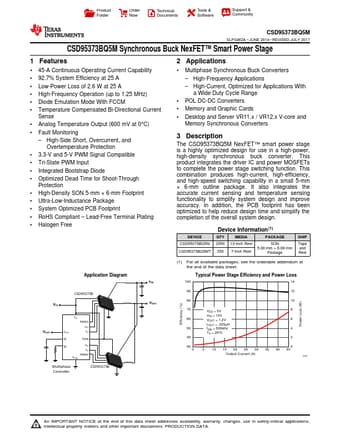

Preview of CSD95373BQ5M PDF
datasheet Preview Page 2 datasheet Preview Page 3
