CSD95372BQ5MC Synchronous Buck NexFET Smart Power Stage

CSD95372BQ5MC Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CSD95372BQ5MC SLPS417A * APRIL 2014 * REVISE.
The CSD95372BQ5MC NexFET™ smart power stage is a highly optimized design for use in a highpower, high-density synchronous buck converter.

CSD95372BQ5MC Features

* 1 60-A Continuous Operating Current Capability
* 93.4% System Efficiency at 30 A
* Low Power Loss of 2.8 W at 30 A
* High-Frequency Operation (up to 1.25 MHz)
* Diode Emulation Mode With FCCM
* Temperature-Compensated Bidirectional Current Sense

CSD95372BQ5MC Applications

* Multiphase Synchronous Buck Converters
* High-Frequency Applications
* High-Current, Low Duty-Cycle Applications
* POL DC-DC Converters
* Memory and Graphic Cards
* Desktop and Server VR11.x / VR12.x V-Core and Memory Synchronous Converters 3 Descri

📥 Download Datasheet

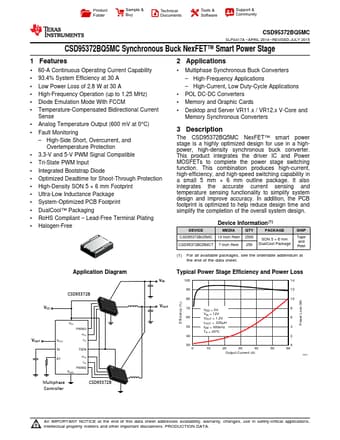

Preview of CSD95372BQ5MC PDF
datasheet Preview Page 2 datasheet Preview Page 3
