CSD95372BQ5M Synchronous Buck NexFET Smart Power Stage

CSD95372BQ5M Description

Product Folder Sample & Buy Technical Documents Tools & Software Support & Community CSD95372BQ5M SLPS499B * MARCH 2014 * REVISED.
The CSD95372BQ5M NexFET™ smart power stage is a highly optimized design for use in a high-power, high-density Synchronous Buck converter.

CSD95372BQ5M Features

* 1 60 A Continuous Operating Current Capability
* 93.4% System Efficiency at 30 A
* Low Power Loss of 2.8 W at 30 A
* High-Frequency Operation (up to 1.25 MHz)
* Diode Emulation Mode With FCCM
* Temperature Compensated Bi-Directional Current Sense

CSD95372BQ5M Applications

* Multiphase Synchronous Buck Converters
* High-Frequency Applications
* High-Current, Low-Duty Cycle Applications
* POL DC-DC Converters
* Memory and Graphic Cards
* Desktop and Server VR11.x / VR12.x V-Core and Memory Synchronous Converters 3 Descri

📥 Download Datasheet

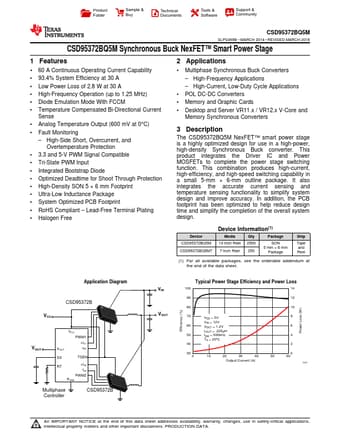

Preview of CSD95372BQ5M PDF
datasheet Preview Page 2 datasheet Preview Page 3
