CSD25481F4 - P-Channel Power MOSFET

Description

This 90 mΩ, 20 V P-Channel FemtoFET™ MOSFET is designed and optimized to minimize the footprint in many handheld and mobile applications.

This technology is capable of replacing standard small signal MOSFETs while providing at least a 60% reduction in footprint size.

.

Features

  • 1 Ultra-Low On Resistance.
  • Ultra-Low Qg and Qgd.
  • High Operating Drain Current.
  • Ultra-Small Footprint (0402 Case Size).
  • 1 mm × 0.6 mm.
  • Ultra-Low Profile.
  • 0.35 mm Max Height.
  • Integrated ESD Protection Diode.
  • Rated >4 kV HBM.
  • Rated >2 kV CDM.
  • Lead and Halogen Free.
  • RoHS Compliant 2.

📥 Download Datasheet

📁 Similar Datasheet

  • CSD20060 - ZERO RECOVERY RECTIFIER (ETC)
  • CSD20060D - ZERO RECOVERY RECTIFIER (ETC)
  • CSD202 - Bi-Directional Current and Power Monitor (AnalogySemi)
  • CSD20L45CT-A - Super Low Barrier High Voltage Power Rectifier (CITC)
  • CSD20N45 - N-Channel Trench Power MOSFET (CASS)
  • CSD-4xxx - NUMERIC/ALPHANUMBERIC DISPLAY (ETC)
  • CSD-822A9 - (CSD-822A9 / CSD-823A9) Digits Display (China Semiconductor)
  • CSD-822B7 - (CSD-822B7 / CSD-823B7) Digits Display (China Semiconductor)
  • CSD-822E - (CSD-822E / CSD-823E) Digits Display (China Semiconductor)
  • CSD-822G - (CSD-822G / CSD-823G) Digits Display (China Semiconductor)
Other Datasheets by Texas Instruments

Full PDF Text Transcription

Click to expand full text

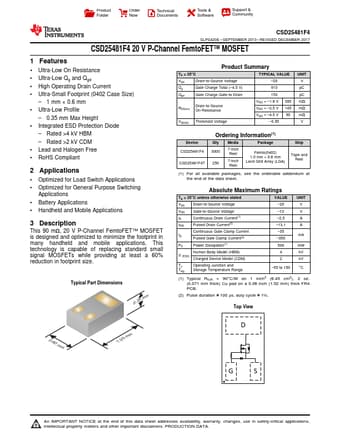

Product Folder Order Now Technical Documents Tools & Software Support & Community CSD25481F4 SLPS420E – SEPTEMBER 2013 – REVISED DECEMBER 2017 CSD25481F4 20 V P-Channel FemtoFET™ MOSFET 1 Features •1 Ultra-Low On Resistance • Ultra-Low Qg and Qgd • High Operating Drain Current • Ultra-Small Footprint (0402 Case Size) – 1 mm × 0.6 mm • Ultra-Low Profile – 0.
