CBTLV3384 - LOW-VOLTAGE 10-BIT FET BUS SWITCH

Product Overview

📥 Download Datasheet

Datasheet preview – CBTLV3384

Datasheet Details

Part number CBTLV3384
Manufacturer Texas Instruments
File Size 1.00 MB
Description LOW-VOLTAGE 10-BIT FET BUS SWITCH
Datasheet download datasheet CBTLV3384 Datasheet
Additional preview pages of the CBTLV3384 datasheet.

Product details

Description

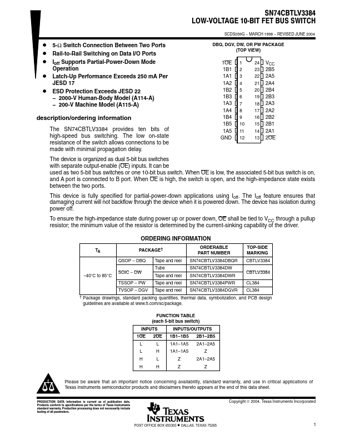

ordering information The SN74CBTLV3384 provides ten bits of high-speed bus switching.The low on-state resistance of the switch allows connections to be made with minimal propagation delay.DBQ, DGV, DW, OR PW PACKAGE (TOP VIEW) 1OE 1 1B1 2 1A1 3 1A2 4 1B2 5 1B3 6 1A3 7 1A4 8 1B4 9 1B5 10 1A5 11 GND 12 24 VCC 23 2B5 22 2A5 21 2A4 20 2B4 19 2B3 18 2A3 17 2A2 16 2B2 15 2B1 14 2A1 13 2OE The device is organized as dual 5-bit bus switches with separate output-enable (OE) inputs.It can be used a
