CBTLV3251 - LOW-VOLTAGE 1-OF-8 FET MULTIPLEXER/DEMULTIPLEXER

Description

ordering information NC

The SN74CBTLV3251 device is a 1-of-8 high-speed FET multiplexer/demultiplexer.

The low on-state resistance of the switch allows connections to be made with minimal propagation delay.

The select inputs (S0, S1, S2) control the data flow.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CBTLV3125 LOW-VOLTAGE QUADRUPLE BUS SWITCH Renesas
CBTL01023 2:1 multiplexer/demultiplexer switch NXP
CBTL02042A 2 : 1 multiplexer/demultiplexer switch NXP
CBTL02042B 2 : 1 multiplexer/demultiplexer switch NXP
CBTL02043A 2 : 1 multiplexer/demultiplexer switch NXP

Other Datasheets by Texas Instruments

Part Number Description
CBTLV3245A LOW-VOLTAGE OCTAL FET BUS SWITCH
CBTLV3125 LOW-VOLTAGE QUADRUPLE FET BUS SWITCH
CBTLV3384 LOW-VOLTAGE 10-BIT FET BUS SWITCH
CBTLV3857 LOW-VOLTAGE 10-BIT FET BUS SWITCH
CBTLV3861 LOW-VOLTAGE 10-BIT FET BUS SWITCH

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

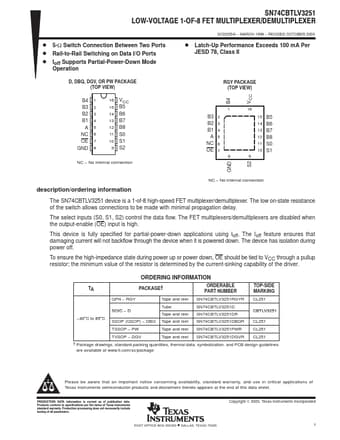

SN74CBTLV3251 LOWĆVOLTAGE 1ĆOFĆ8 FET MULTIPLEXER/DEMULTIPLEXER D 5-Ω Switch Connection Between Two Ports D Rail-to-Rail Switching on Data I/O Ports D Ioff Supports Partial-Power-Down Mode Operation SCDS054I − MARCH 1998 − REVISED OCTOBER 2003 D Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II D, DBQ, DGV, OR PW PACKAGE (TOP VIEW) RGY PACKAGE (TOP VIEW) B4 VCC B4 1 B3 2 B2 3 B1 4 A5 NC 6 OE 7 GND 8 16 VCC 15 B5 14 B6 13 B7 12 B8 11 S0 10 S1 9 S2 NC − No internal connection 1 B3 2 B2 3 B1 4 A5 NC 6 OE 7 8 16 15 B5 14 B6 13 B7 12 B8 11 S0 10 S1 9 GND S2 description/ordering information NC − No internal connection The SN74CBTLV3251 device is a 1-of-8 high-speed FET multiplexer/demultiplexer.
