CBTLV3125 - LOW-VOLTAGE QUADRUPLE BUS SWITCH

Product Overview

Renesas

Part number	CBTLV3125
Manufacturer	Renesas
File Size	296.88 KB
Description	LOW-VOLTAGE QUADRUPLE BUS SWITCH
Datasheet	CBTLV3125 Datasheet

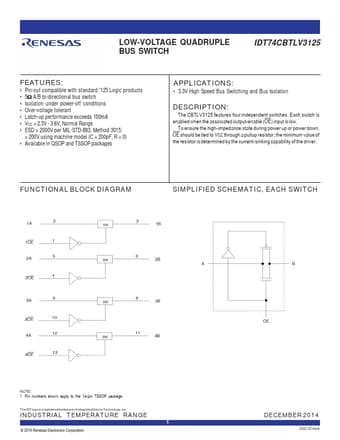

Additional preview pages of the CBTLV3125 datasheet.

The CBTLV3125

Pin-out compatible with standard '125 Logic products.
5Ω A/B bi-directional bus switch.
Isolation under power-off conditions.
Over-voltage tolerant.
Latch-up performance exceeds 100mA.
VCC = 2.3V - 3.6V, Normal Range.
ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0).
Available in QSOP and TSSOP packages.
