CBTLV16800 - LOW-VOLTAGE 20-BIT FET BUS SWITCH

Product Overview

Texas Instruments

Datasheet Details

Part number	CBTLV16800
Manufacturer	Texas Instruments
File Size	966.96 KB
Description	LOW-VOLTAGE 20-BIT FET BUS SWITCH
Datasheet	CBTLV16800 Datasheet

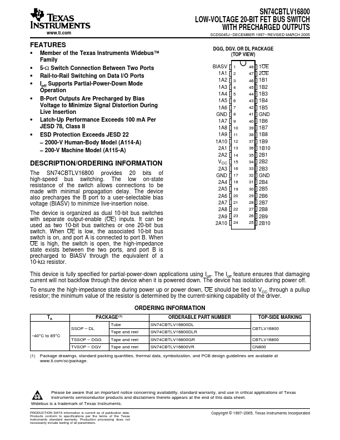

Additional preview pages of the CBTLV16800 datasheet.

Product details

Description

ORDERING INFORMATION The SN74CBTLV16800 provides 20 bits of high-speed bus switching.The low on-state resistance of the switch allows connections to be made with minimal propagation delay.The device also precharges the B port to a user-selectable bias voltage (BIASV) to minimize live-insertion noise.The device is organized as dual 10-bit bus switches with separate output-enable (OE) inputs.It can be used as two 10-bit bus switches or one 20-bit bus switch.When OE is low, the associated 10-b

Features

Member of the Texas Instruments Widebus™ Family.
5-Ω Switch Connection Between Two Ports.
Rail-to-Rail Switching on Data I/O Ports.
Ioff Supports Partial-Power-Down Mode Operation.
B-Port Outputs Are Precharged by Bias Voltage to Minimize Signal Distortion During Live Insertion.
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II.
ESD Protection Exceeds JESD 22.
2000-V Human-Body Model (A114-A).
200-V Machine.
